120A DC Immune Current Transformer 2500:1 0.2class

DC immune current transformer, Application and Features:
1. for electronic energy meters, single-phase and three-phase meters
2.The iron core is made of high quality ferrous amorphous alloy and nanocrystalline alloy material,
and the secondary wire is made of high strength electromagnetic enameled wire, fully epoxy resin seal, with high precision and good linearity.
3.The cases adopts imported flame retardant PBT material with good mechanical and electrical strength.
4.Small size, light weight, easy to install.

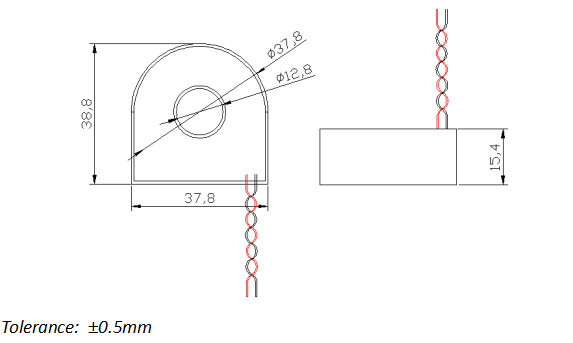

Structural parameter

ZMXQD05

120A DC immune current transformer


Main technical parameters

parameters

value

Operating frequency

50 Hz ~ 400 Hz

Operating temperature

-40℃ ~ 85℃

Relative humidity

≤95%

Rated primary current  Ip

5A

Maximum primary operating current Imax

120A

Testing current for DC component 120A/Root 2

<3%

Rated second current

2mA

Turns ratio

2500:1

Sampling resistor

≤20Ω

Accuracy class

0.2

power-frequency withstand voltage

3Kv/1min

Insulation resistance

>500M/500Vdc



Accuracy class

With the percentage(%)of Ip

5

20

100

120

Ratio Error (±%)

0.2

0.2

0.2

0.2

Phase Displacement (±ˊ)

15

15

15

15

Material List

No.

material

Spec.

UL file number

1

Inner core

Nanocrystalline  core

/

2

Outer core

Amorphous core

/

3

Core shell

PBT

E238981

4

winding

 2500T

E258243

5

case

Black

E238981

6

Epoxy resin

TXH-9201-10 epoxy resin insulating compound

E196959

7

Leading wire

UL1569, 26#AWG, 105, 300V

Red, black

E315651

8

Tape

Flame retardant,

Environmental protection

E165111
