Split Core Current Transformer ZEMCTK04

  • ZEMCTK04

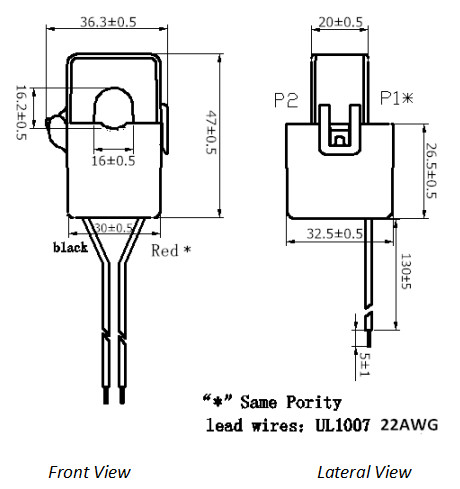

Structural parameters

ZEMCTK04 Split core current transformer

Mainly used for the Reconstruction project of the distribution system, not power-off stitches, can be quickly loading and unloading



Charateristics and usage

Rated input current

10A

Actuary  level

1.0 class

Rated output current

3.33mA

application

Measurement

Ratio

3000:1

Installation

Split core

Operating current

0~100A (20Ω)

Operating temperature

-40℃~+75℃

Frequency

50HZ/60HZ

Relative humidity

≤95%

(1)Dielectric strength: the power frequency between primary winding and secondary winding is 2.5KV / min, no breakdown, arcing phenomenon, leakage current<1mA;


(2)Insulation resistance: between the primary winding and the secondary winding≥1000MΩ/500Vdc

Error range

Current error(Ratio error)±%

Phase error(angle error)′

Percentage of rated current

Rated current percentage value

5

20

100

400

5

20

100

400

1.5

≤0.75

≤0.5

≤0.5

120

100

100

100
