Φ13mm Current transformer Flying Wires 1000:1

AC flying wires current transformer 50/60HZ, MINI Precision flying wires current transformers. Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, lead wires assembly
5. fully ROHS compliant , CE approved

production description

ZEMCT303A  Current Transformer

Mainly for motor soft-start current sampling

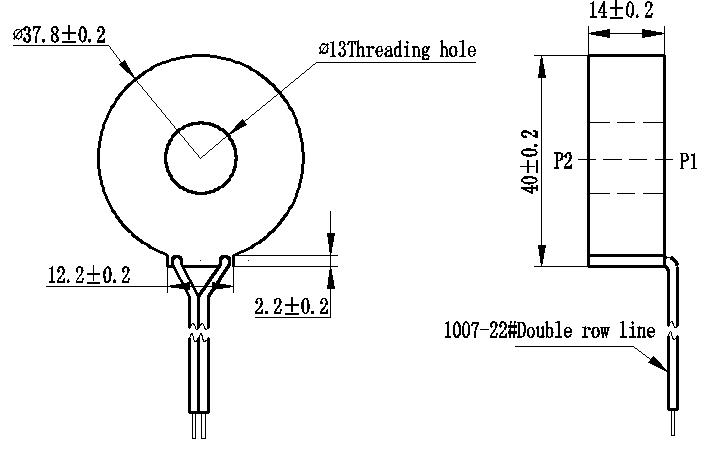

Structural parameters


                        Front View                                          Lateral view



The main technical parameters

Model

ZEMCT303A

      input current

0~400Asampling resistor

Rated output current

5mA at input 5A

Turns ratio

1000:1

phase angle error

≤200'(input 10Asampling resistor

linearity

≤5%(5%dot~120%dot)

Permissible error

-5% ≤ f ≤0input 10Asampling resistor

Output leads

Red, black same polarity: P1 and red wire

application

motor soft-start current sampling

Encapsulation

Epoxy

installation

Straight-through type

operating temperature

-40℃~+85℃



Direction for use

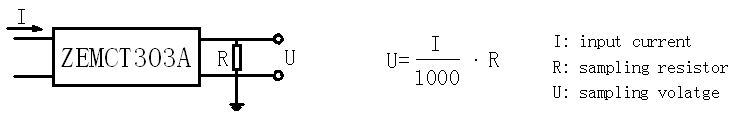

1. ZEMCT303A used for protection. Typical usage as shown.
