Φ13mm Current transformer Flying Wires 2000:1

AC flying wires current transformer 50/60HZ, MINI Precision flying wires current transformers. Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, lead wires assembly
5. fully ROHS compliant , CE approved

production description

ZEMCT303B  Current Transformer

Mainly for motor soft-start current sampling

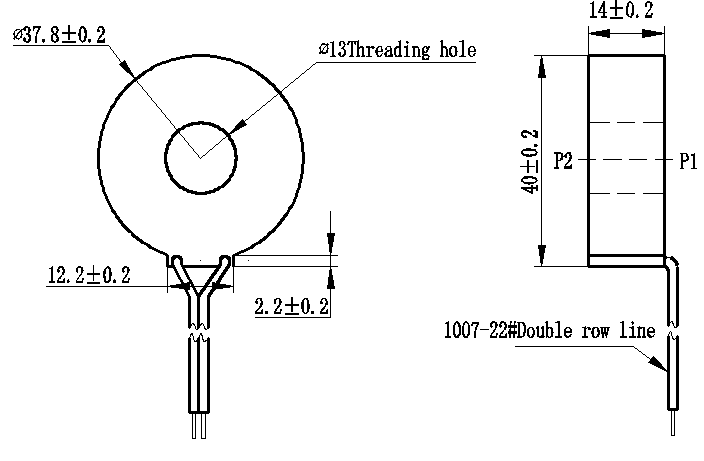

Structural parameters


                         Front View                                                                   Lateral view



The main technical parameters

Model

ZEMCT303B

 input current

0~800Asampling resistor

Rated output current

2.5mA at input 5A

Turns ratio

2000:1

phase angle error

≤200'(input 10Asampling resistor

linearity

3%(5%dot~120%dot)

Permissible error

-3% ≤ f ≤0((input 10Asampling resistor

Output leads

Blue, blacksame polarityP1 and blue wire

application

motor soft-start current sampling

Encapsulation

Epoxy

installation

Straight-through type

operating temperature

-40℃~+85℃



Direction for use




1. ZEMCT303B used for protection. Typical usage as shown.
