Φ13mm Current transformer Flying Wires 2000:1 0.2class

AC flying wires current transformer 50/60HZ, MINI Precision flying wires current transformers. Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, lead wires assembly
5. fully ROHS compliant , CE approved

production description

ZEMCT303E  Current Transformer

 Structural parameters

            (Unit:mm)


 NOTE: ALL LEAD WIRES ARE #22AWG UL1007, 300V;

         LENGTH 1000±20.0mm. S&T 7.0mm



                          Front View                                                                            Lateral view


The main technical parameters:

Model

ZEMCT303E

input current

0~120Asampling resistor 10Ω

Rated output current

15mA at input 30A

Turns ratio

2000:1

Accuracy class

0.2

linearity

≤0.1%(5%dot~120%dot)

Permissible error

-0.2% ≤ f ≤+0.2%input 30Asampling resistor 10Ω

Output leads

White, blacksame polarity: P1 and white wire

Isolation voltage

3000V

Case

PBT

CORE

Nano core for T30*20*8-107

Wire

0.13mm/2UEW-F/155C

Encapsulation

Epoxy

installation

Straight-through type

operating temperature

-40℃~+85℃


Direction for us
age

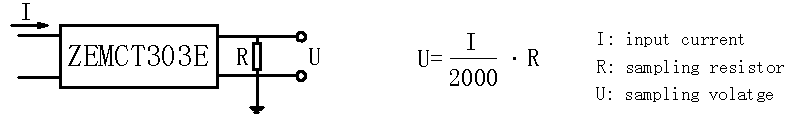

1. ZEMCT303E used for protection. Typical usage as shown.
