Φ9.5mm Current transformer Flying Wires 2000:1 80A

AC flying wires current transformer 50/60HZ, MINI Precision flying wires current transformers. Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, lead wires assembly
5. fully ROHS compliant , CE approved

production description

ZMCT123A  Current Transformer

Small sizehigh accuracygood consistencyfor power measurement and protection

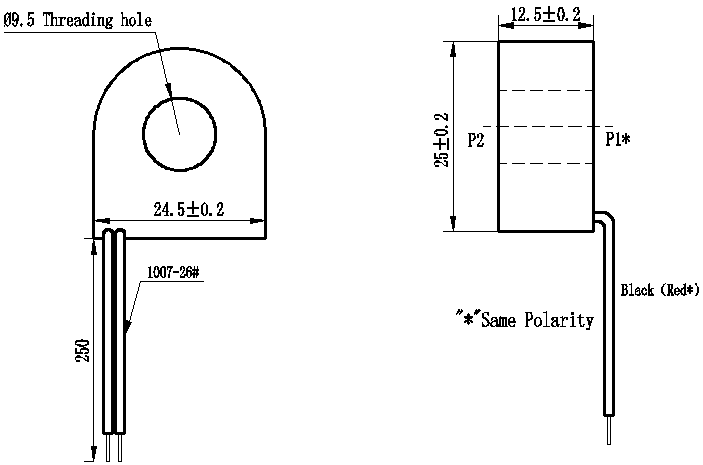

Structural parameters



                     Front view                                                                               Left View



The main technical parameters

Model

ZMCT123A

     input current

0~80Asampling resistor 5

Rated output current

2.5mA at input 5A

turns ratio

2000:1

phase angle errorrated input

≤60input 10Asampling resistor 5

linear range

0~80Asampling resistor 5

linearity

0.2%5%dot~120%dot

Accuracy class

-0.5% ≤ f ≤+0.5%input 10Asampling resistor 5

isolation voltage

4500V

application

measurement  or  protection

Encapsulation

Epoxy

installation

Output leads installation (conventional lead length shown in drawing)

operating temperature

-40℃~+85℃

Direction for use

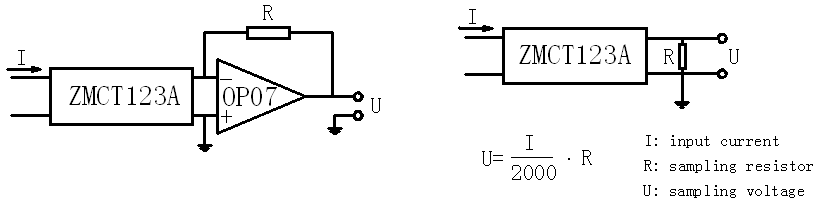

                                            Figure Ⅰ                                                           FigureⅡ



1. The typical usage of the product is for the active output (Figure Ⅰ). R is a sampling resistor.

2. The product can be directly through the resistance sampling, easy to use (FigureⅡ).
