Φ8.8mm Current transformer Flying Wires 2500:1 100A

AC flying wires current transformer 50/60HZ, MINI Precision flying wires current transformers. Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, lead wires assembly
5. fully ROHS compliant , CE approved

production description

ZMCT124I Current transformer

Small size, high accuracy, good consistency, for power measurement and protection

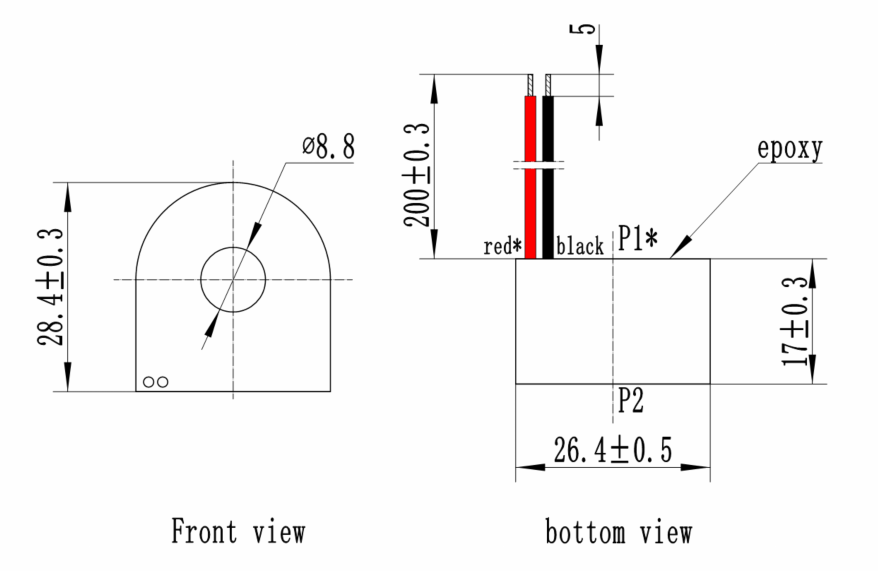

Structural parameter:


The main technical parameter:

Model

ZMCT124I

 input current

0-100A(10Ω)

Rated output current

2mA at 5A

turns ratio

2500:1

phase angle errorrated input

≤15'(5A input, sampling resistor 10Ω

linearity

0.2%(5%~120% of 5A)

Accuracy class

0.2

isolation voltage

4500V

application

Measurement or protection

Encapsulation

Epoxy

installation

Flying wire type

operating temperature

-40℃~+85

 Direction for use:

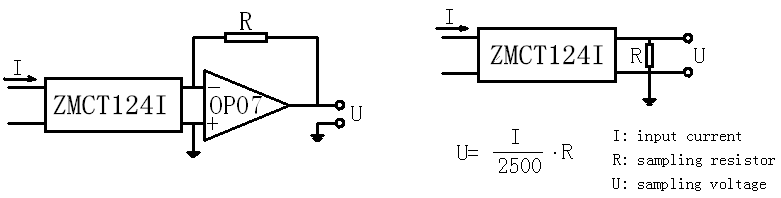

                                     Figure Ⅰ                                                                      FigureⅡ



1. The typical usage of the product is for the active output (Figure Ⅰ). R is a sampling resistor, c and r is used for phase compensation.

       2. The product can be directly through the resistance sampling, easy to use (FigureⅡ).

       3. The instructions are for reference only, specific parameter is subject to specifications (acknowledgment).
