Φ20mm Current transformer Flying Wires 5000:1 0.5class

AC flying wires current transformer 50/60HZ, MINI Precision flying wires current transformers. Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, lead wires assembly
5. fully ROHS compliant , CE approved

production description

ZMCT304E-2 current transformer

High accuracygood consistencyfor motor soft-start current sampling

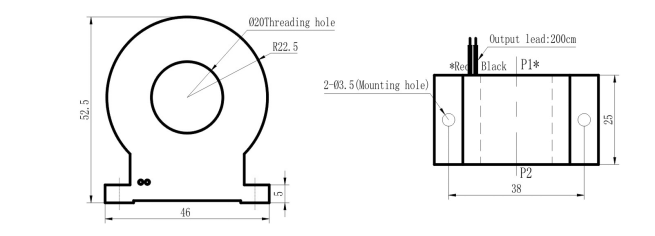

Structural parameter:


                          Front view                    Bottom view



The main technical parameter

Model

ZMCT304E-2

Input current

0~200Asampling resistor 10Ω

Output current

10mA at input 50A

turns ratio

5000:1

phase angle error

20input 10Asampling resistor 10Ω

Accuracy class

0.5

linearity

0.5%(5%dot~120%dot)

Permissible error

-0.5%≤f≤+0.5%input 10Asampling resistor 10Ω

isolation voltage

4500V

application

motor soft-start current sampling

Encapsulation

Epoxy

installation

Screw mounting

operating temperature

-40~+70



Direction for use:

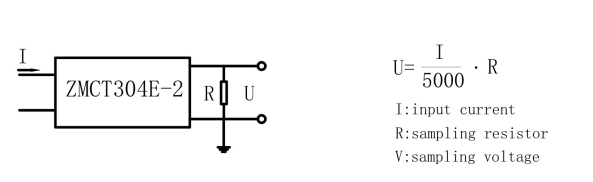

1、ZMCT304E-2 used for protection, typical usage as shown.

2、The instructions are for reference only; specific parameter is subject to specifications (acknowledgment).
