2000:1 PCB mounting current transformer 0.2class

ZEMCT131 mini Precise current transformer.
Small size, high accuracy, good consistency,Applied to the power frequency 50(60)Hz multifunction meter

Structural parameter

ZEMCT131 Precise current transformer

Small size, high accuracy, good consistencyApplied to the power frequency 50(60)Hz

multifunction meter

Structural parameter

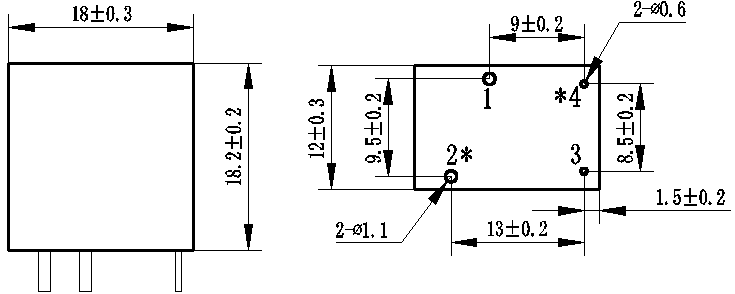

                                           Input: 12pinsoutput : 34pins                          Same plority (*)



                                        Front view                                                            Bottom view


Main technical parameters

Model

ZEMCT131

Rated   input current

5A

Rated   output current

2.5mA

Turns   ratio

2000:1

Phase   angle error

≤20'(Input 1Asampling resistor 100Ω

Continuous   current range

0~6A

Linearity

0.2%(5%dot~120%dot)

Permissible   error

 -0.2%≤f≤+0.2%Input 1Asampling resistor 100Ω)

Isolation   voltage

3000V

application

Accurate measurement of current and   power

Installation

PCB   mountingPin length>3mm

encapsulation

Epoxy

Operating   temperature

-40℃~+85℃


Instructions for use

ZEMCT131-

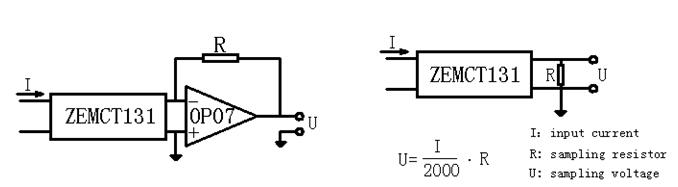

                    Figure Ⅰ                                                                              FigureⅡ

1. The typical usage of the product is for the active output ( Figure Ⅰ) . R is a sampling resistor.

2. The product can be directly through the resistance sampling , easy to use ( FigureⅡ).
