Φ5mm Mini PCB Mounting Current Transformer 2000:1 40A

AC PCB mounting current transformer 50/60HZ
MINI Precision PCB mounting current transformers. Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved

Structural parameters

ZMCT103E  Current Transformer

Small sizehigh accuracygood consistencyfor current and power measurement



Structural parameters




                            Front view                                                                     Bottom view




The main technical parameters

model

ZMCT103E

input current

0~40Asampling resistor 10

Rated output current

2.5mA at input 5A

turns ratio

2000:1

phase angle error

≤30(input 10Asampling resistor 10

accuracy

0.3 class

linearity

≤0.2%5%dot~120%dot

Permissible error

-0.3%≤f≤+0.3% (input 10Asampling resistor 10

isolation voltage

4500V

application

Measuring or protection

Encapsulation

Epoxy

installation

PCB mountingPin Length>3mm

operating temperature

-40℃~+85℃


Direction for use

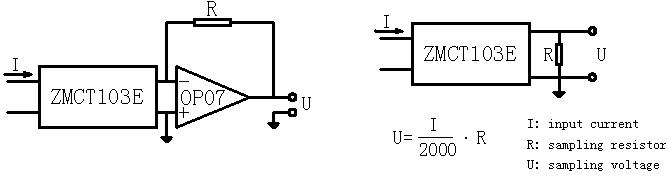

                                                Figure Ⅰ                                                 FigureⅡ

1. The typical usage of the product is for the active output (Figure Ⅰ). R is a sampling resistor.

2. The product can be directly through the resistance sampling, easy to use (FigureⅡ).
