φ13mm PCB mounting current transformer 2000:1 200A 0.2class 10Ω

ZMCT303S Current Transformer
Small size, wide linear range,mainly for power automation protection sampling
Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved

Structural parameters

ZMCT303S  Current Transformer

Small size, high accuracy, good consistency, for power measurement and protection

Structural parameter:




                                                       Front view                               Bottom view

                                           * same polarity


The main technical parameters

Model

ZMCT303S

input current

0~200A (sampling resistor 1)

Rated output current

15mA at input 30A

turns ratio

2000:1

phase angle error

30 (input 30A, sampling resistor 1)

linearity

0.1%(5%dot~120%dot)

Accuracy class

0.2

isolation voltage

3000V

application

measurement  or  protection

Encapsulation

Epoxy

installation

PCB mounting

operating temperature

-40℃~+85


Direction for use

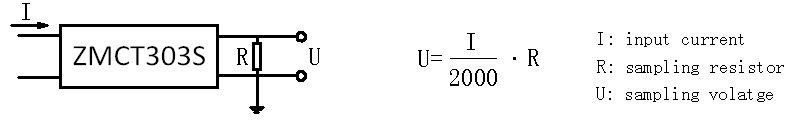

1. ZMCT303S used for protection. Typical usage as shown.
