φ10.5mm PCB Mounting Current Transformer 2000:1 100A

ZEMCT130B Current Transformer
Small size,high accuracy,good consistency,for power measurement and protection
Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved

Structural parameter

ZEMCT130B  Current Transformer

Small sizehigh accuracygood consistencyfor power measurement and protection



Structural parameter

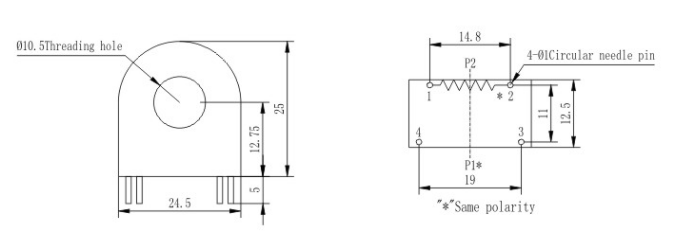

                                                                    Front view                            Bottom view


The main technical parameter

Model

ZEMCT130B

input current

0~100A50Ω

Rated output current

2.5mA at 5A

turns ratio

2000:1

phase angle errorrated input

60'(50Ω

linearity

0.5%

Accuracy class

0.5

isolation voltage

3000V

application

protection

Encapsulation

Epoxy

installation

PCB mounting

operating temperature

-40~+70


Direction for use

ZEMCT130B-

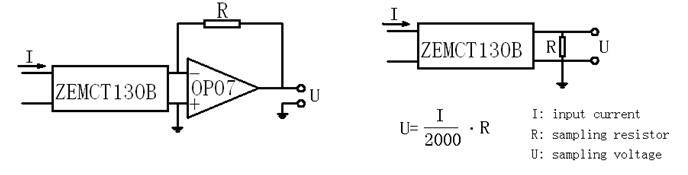

                                                       Figure Ⅰ                                             FigureⅡ

1. The typical usage of the product is for the active output (Figure Ⅰ). R is a sampling resistor, c and r is used for phase compensation.

2. The product can be directly through the resistance sampling, easy to use (FigureⅡ).

3. The instructions are for reference only, specific parameter is subject to specifications (acknowledgment).
