φ4mm PCB mounting Current transformer 1000:1 10A

ZMCT104A Current Transformer
Small size,high accuracy,good consistency,for current and power measurement
Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved

Structural parameters

ZMCT104A  Current Transformer

Small sizehigh accuracygood consistencyfor current and power measurement

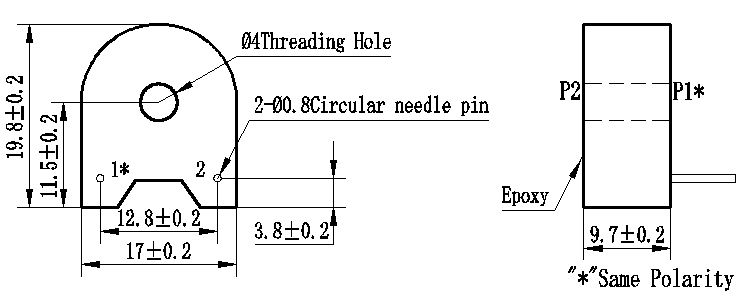

Structural parameters:




                                          Front view                                                                      Lateral view


The main technical parameters

model

ZMCT104A

input current

0~10Asampling resistor 5

Rated output current

5mA at input 5A

turns ratio

1000:1

phase angle error

≤30input 5Asampling resistor 5

linear range

0~10Asampling resistor 5

linearity

≤0.2%5%dot~120%dot

Permissible error

-0.5%≤f≤+0.5%input 5Asampling resistor 5

isolation voltage

4500V

application

measurement of current and power

Encapsulation

Epoxy

installation

PCB mounting Pin Length>3mm

operating temperature

-40℃~+85℃


Direction for use

ZMCT104A-

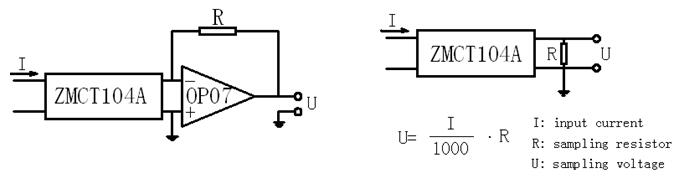

                                       Figure Ⅰ                                                         FigureⅡ

1. The typical usage of the product is for the active output ( FigureⅠ ) . R is a sampling resistor.

2. The product can be directly through the resistance sampling, easy to use (FigureⅡ).
