φ4mm PCB mounting Current transformer 2000:1 20A

ZMCT104C current transformer
Small size,high accuracy,good consistency,for current and power measurement
Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved

Structural parameters

ZMCT104C current transformer

Small sizehigh accuracygood consistencyfor current and power measurement

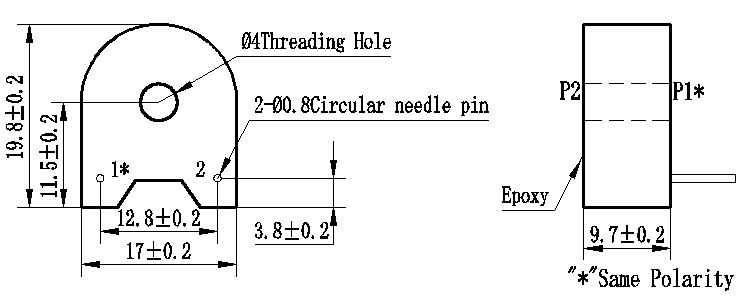

Structural parameters:




                                         Front view                                                                    Lateral view




The main technical parameters

model

ZMCT104C

input current

0~20Asampling resistor 100Ω

Rated output current

2.5mA at input 5A

turns ratio

2000:1

phase angle error

≤15input 5Asampling resistor 100Ω

linear range

0~20Asampling resistor 100Ω

linearity

0.2%5%dot~120%dot

Permissible error

-0.2%≤f≤+0.2% input 5Asampling resistor 100Ω

isolation voltage

4500V

application

Precise measurement of current and power

Encapsulation

Epoxy

installation

PCB mounting Pin Length>3mm

operating temperature

-40℃~+85℃


Direction for use

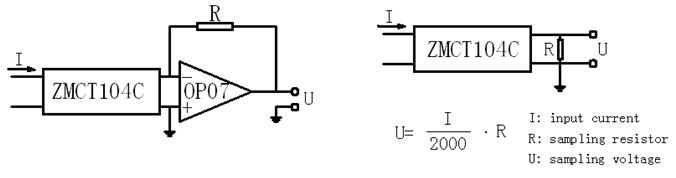

ZMCT104C-

                                                    Figure Ⅰ                                             FigureⅡ



1. The typical usage of the product is for the active output ( FigureⅠ ) . R is a sampling resistor.

2. The product can be directly through the resistance sampling, easy to use (FigureⅡ).
