φ4.5mm PCB Mounting Current Transformer 2000:130A 100Ω 0.2class

ZMCT113B current transformer
Small size,high accuracy,good consistency,for accurate current and power measurement
Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved

Structural parameters

ZMCT113B  Current Transformer

Small sizehigh accuracygood consistencyfor accurate current and power measurement

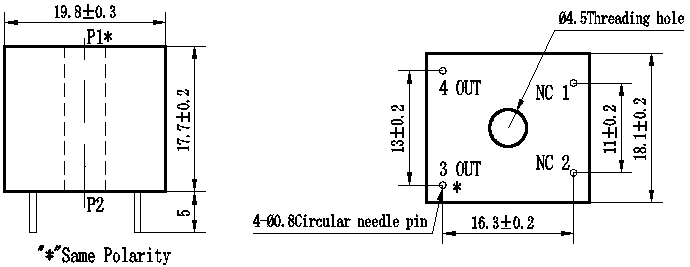

Structural parameters:


                                        34pin: secondary output12pin: empty pin

                   Front view                                                    Bottom view


The main technical parameters

Model

ZMCT113B

Rated input current

0~30A((sampling resistor 100Ω

Rated output current

2.5mA at input 5A

turns ratio

2000:1

phase angle error

≤10'(input 5Asampling resistor 100Ω

Accuracy class

0.2

linearity

≤0.2%5%dot and 120%dot

Ratio error

-0.2%≤f≤+0.2%input 5Asampling resistor 100Ω

isolation voltage

4500V

application

Precise current and power measurement

Encapsulation

Epoxy

installation

PCB mounting pin length >3mm

operating temperature

-40℃~+70℃


Direction for use

ZMCT113B-

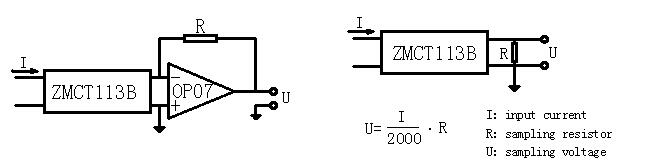

Figure Ⅰ                                          FigureⅡ

1. ZMCT113B used for the measurement. The typical usage is shown in Figure Ⅰand Figure Ⅱ. R is a sampling resistor.

2. Empty pin can not be grounded.
