PCB mounting current transformer 400:1

ZMCT115S Current Transformer,AC PCB mounting current transformer 50/60HZ, MINI Precision PCB mounting current transformers
Small size,high accuracy,good consistency,for accurate current and power measurement.
Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved

Structural parameters

ZMCT115S  Current Transformer

Small sizehigh accuracygood consistencyfor accurate current and power measurement



Structural parameters


                                                                                                      fine needle: inputthick needle: output

                                  Front view                                             Bottom view


The main technical parameters

The main technical parameters

Model

ZMCT115S

input current

0~15Asampling resistor 13Ω

Rated output current

2.5mA at input 1A

turns ratio

400:1

phase angle error

≤20input 1Asampling resistor 13Ω

Accuracy class

0.2

linearity

≤0.2%5%dot~120%dot

Permissible error

-0.2%≤ f ≤+0.2%input 1Asampling resistor 13Ω

isolation voltage

3000V

application

Precise current and power measurement

Encapsulation

Epoxy

installation

PCB mounting pin length>3mm

operating temperature

-40℃~+70℃




Direction for use

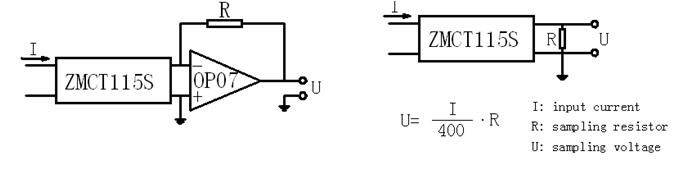

ZMCT115S-

                                             Figure Ⅰ                                                     Figure Ⅱ

1. The typical usage of the product is for the active output ( FigureⅠ ) . R is a sampling resistor.

2. The product can be directly through the resistance sampling , easy to use (figureⅡ).
