φ8.8mm PCB Mounting Current Transformer 2500:1 80A

ZMCT124A Current transformer
Small size, high accuracy, good consistency, for power measurement and protection
Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved

Structural parameter

ZMCT124A Current transformer

Small size, high accuracy, good consistency, for power measurement and protection

Structural parameter:

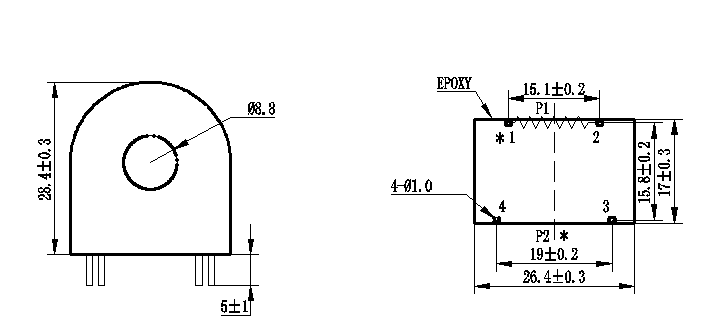

                                                    Front view                                                                             Bottom view


The main technical parameters

Model

ZMCT124A

input current

0~80A100Ω

Rated output curernt

8mA at 20A

turns ratio

2500:1

phase angle errorrated input

≤15'(100Ω

linearity

0.1%

Accuracy class

0.2

isolation voltage

3000V

application

Measurement

Same polarity

P12

Encapsulation

Epoxy

installation

PCB mounting

operating temperature

-40℃~+85


Direction for use

ZMCT124A-

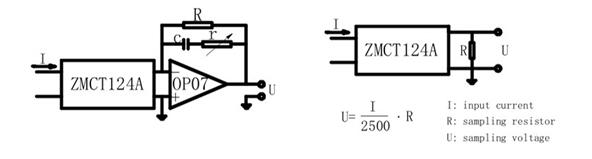

Figure Ⅰ                                  Figure Ⅱ

1. The typical usage of the product is for the active output (Figure ). R is a sampling resistor. C & R is for phase compensation.
