φ4.5mm PCB mounting current transformer 1000:1 10A

ZMCT204D Current Transformer
Small size,high accuracy,food consistency,for current and power measurement
Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved

Structural parameters

ZMCT204D  Current Transformer

Small sizehigh accuracyfood consistencyfor current and power measurement

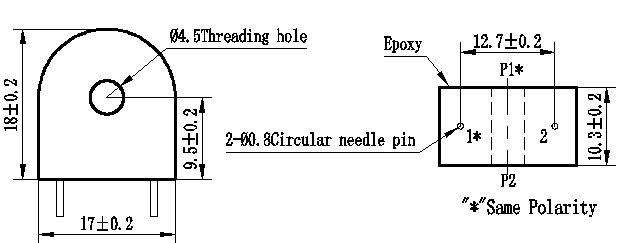

Structural parameters:




                                          Front view                                                 Bottom view




The main technical parameters

Model

ZMCT204D

input current

0~10Asampling resistor 50Ω

Rated output current

5mA at input 5A

turns ratio

1000:1

phase angle error

≤15'(input 1Asampling resistor 50Ω

Accuracy class

0.2

linearity

≤0.2%5%dot~120%dot

Ratio error

-0.2%≤f≤+0.2%input 1Asampling resistor 50Ω

isolation voltage

4500V

application

current and power measurement

Encapsulation

Epoxy

installation

PCB mounting Pin Length>3mm

operating temperature

-40℃~+85℃

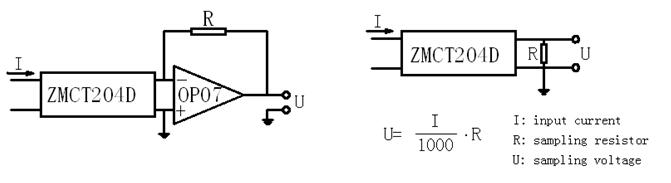

Usage direction

ZMCT204D-

Figure Ⅰ                                  FigureⅡ



1. The typical usage of the product is for the active output  ( Figure) . R is a sampling resistor.

2. The product can be directly through the resistance sampling , easy to use (Figure).
