φ6.5mm PCB mounting Current Transformer 1000:1 8A

ZMCT205D-2 current transformer
Small size,high accuracy,good consistency,for simple current monitoring and control
Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved

Structural parameters

ZMCT205D-2 current transformer

Small size, high accuracy,good consistency, for simple current monitoring and control

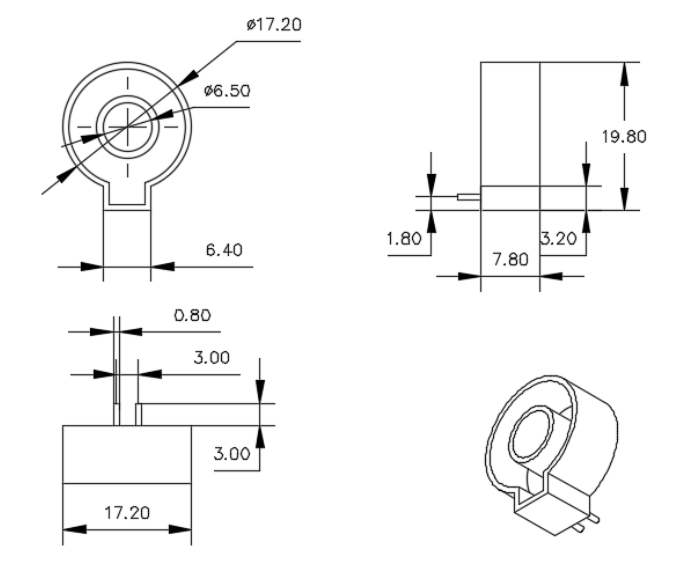

1. Structural parameters


Ø  Unit: mm



Ø  Toleance: ±0.2mm



Ø  Pin length 3.0±0.5mm



The main technical parameters

Model


ZMCT205D-2




Rated input current


5A




Rated output current


5mA




turns ratio


1000:1




phase angle error


≤60'(input 5Asampling resistor 25Ω




linear range


0~8Asampling resistor 25Ω




linearity


≤0.5%5%dot ~120%dot




Permissible error


-0.5% ≤ f ≤+0.5%input 5Asampling resistor 25Ω




isolation voltage


4500V




application


simple current monitoring and control




Encapsulation


Epoxy




installation


PCB mounting




operating temperature


-25~+85


Test datas

ZMCT205D-2-

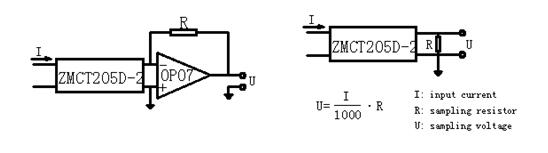

Direction for use

ZMCT205D-2--

                             Figure Ⅰ                                                         Figure Ⅱ



ZMCT205D-2 used for the measurement, the typical usage is shown in Figure and Figure . R is a sampling resistor.


Material list


NO.

Material

Spec, model

UL code

SGS









1

Ultracrystallite   core

Ø10*12.4*3.2

-

yes








2

Core Shell

PBT

E332375

yes










Flame retardant,




3

Tape

Environmental protection,

E165111

yes


V0 105 degrees,









PlasterYellow Glue










4

Enameled wire

2UEWØ0.08, 1000T

E258243

yes


(Winding wire)













5

Outer

ZCT1-1, Environmental protection

E238981

yes


covering/Outside Shell








6

Fills and seals

TXH-9201-10 epoxy resin

E196959

yes


material

insulating compound












7

PINS

STEEL


yes
