φ5mm PCB mounting current transformer 500:1

AC PCB mounting current transformer 50/60HZ
MINI Precision PCB mounting current transformers . Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved

product datasheet

ZMCT206-500 Current Transformer

FEATURES


Frequency range from 20 kHz~200 kHz

Primary current rating to 15Amps

Primary to secondary isolated to 2500 VAC

Approx weight 5.3g

Operating free air temperature range     -40℃ to 85℃

Storage temperature range         -40℃ to 125℃



SELECTION GUIDE



Order Code

Number  Of Turns



Pulse V sec x t max @ Frequency



L sec mH min@ Secondary inductance tested

R sec

Ω

max

Typical load

Ω

max

ZMCT206-500

500

700V.μS

20kHz~200 kHz

700mH@10kHz.1V

25

500

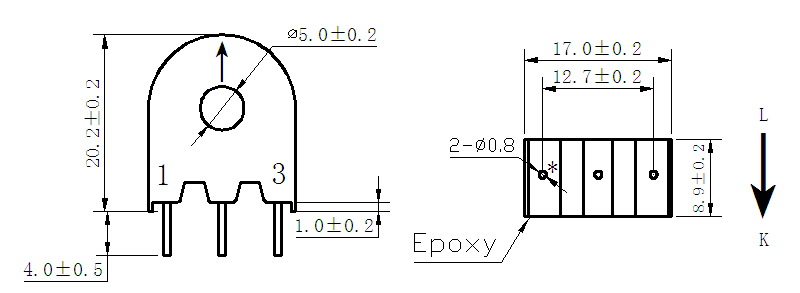

MECHANICAL DIMENSIONS


CIRCUIT SCHEMATIC


APPLICATIONS

Isolated current feed-back signal in switch mode power supplies

Isolated bi-directional current sensor with full wave bridge rectifier
