2mA/2mA Voltage Transformer with UL Certificate for UPS

ZMPT101K miniature voltage transformer is designed for applications where AC voltage signals must be transformed accurately into a lower voltage signal appropriate for micro-processor based circuits. ZMPT101K current-type voltage transformer is a kind of mA current transformer, which turn ratio between primary and secondary is similar to 1:1. a limiting resistor is nessary to be in it with primary winding.ZMPT101K is popular to a limited internal space of devices.
The model can be designed and manufactured to meet the specific design challenges of the client’s specific application.ZMPT101K is only a small sampling of the many different products which have been and are currently being manufactured.

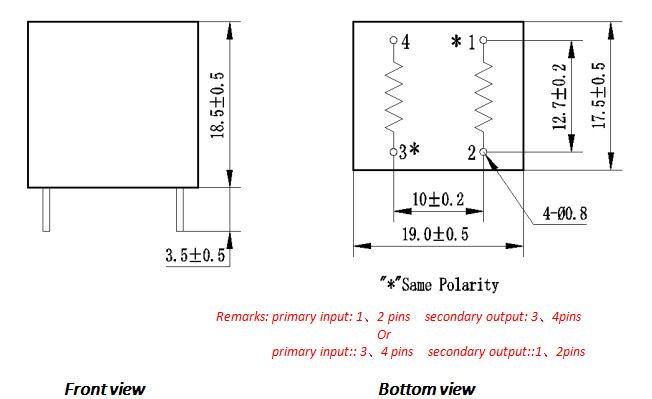

Structural parameters


ZMPT101K

Current-type Voltage Transformer

Small size, high accuracy, good consistency,  for voltage and power measurement

The main technical parameters

Model

ZMPT101K

Rated input current

2mA

Rated output current

2mA

turns ratio

1000:1000

phase angle error

20'(input 2mAsampling resistor 50Ω

linear range

0~1000V       0~10mAsampling resistor 50Ω

linearity

0.2% (20%dot~120%dot)

Permissible error

-0.2%f +0.2%input 2mAsampling resistor 50Ω

isolation voltage

4000V

application

voltage and power measurement

Encapsulation

Epoxy

installation

PCB mountingPin Length>3mm

Operating temperature

-40~+85

Direction for use


1. The typical usage of the product is for the active output (Figure). Ris a limiting resistorR is a sampling resistor.

                                           2. The product can be directly through the resistance sampling , easy to use ( FigureⅡ).

Test data

Typical test data-ZMPT101K
Inspection itemInspection DeviceInspection Requirements
Appearance InspectionVIsual No crack, no scratch, no stain
Pin Length(mm)Vernier Caliper3.5±0.5
Same PolarityHESE Transformer calibratorPin 1 and Pin 3
Insulation ResistanceMN4231B Hi-pot Tester1GΩ@500Vdc
Dielectric StrengthMN4231B Hi-pot Tester4000V, 1min, 1mA
Output Ratio ErrorHESE Transformer calibrator≤0.2%(RL=50Ω)
Phase ErrorHESE Transformer calibrator≤20'(RL=50Ω)
Test Point% of input 2mA, 50Ω
5205080100120
1#Ratio error(%)-0.085 -0.110 -0.110 -0.125 -0.128 -0.128
Phase error(')26.00 21.00 17.00 14.00 13.00 11.30
2#Ratio error(%)-0.080 -0.106 -0.111 -0.110 -0.114 -0.115
Phase error(')22.00 19.70 15.80 13.00 11.80 10.90
3#Ratio error(%)-0.069 -0.100 -0.108 -0.112 -0.119 -0.120
Phase error(')24.00 21.00 17.00 15.00 13.00 12.40
4#Ratio error(%)-0.047 -0.075 -0.076 -0.083 -0.090 -0.092
Phase error(')19.00 17.32 15.00 13.00 12.20 11.30
5#Ratio error(%)-0.080 -0.110 -0.114 -0.119 -0.125 -0.124
Phase error(')25.00 21.00 17.00 14.00 13.00 11.80


Material List

ZMPT101K Material list
NO.MaterialSpec, modelUL codeSGS
1Nanocrystalline coreØ9.5×15×10——yes
2Core boxPBTE332375yes
3Tape8mm Flame retardant,Environmental protectionE165111yes
4Enameled wire(Winding wire)2UEWØ0.07E258243yes
5Outer coveringEnvironmental protectionE238981yes
6Fills and seals materialTXH-9201-10 epoxy resin insulating compoundE196959yes
