φ65mm split residual current transformer 2000:1

Application and Features
1. Measurement and protection for leakage current
2. General measurement and protection in power systems for highly mobility or space-constrained or uninterrupted power systems.
3. With the split core structure, easy to install, remove, and operate without disconnecting the measured primary conductor.
4. beautiful appearance, small size and light weight .

Main technical parameters

Item

Sign

Technical Parameters

Item

Sign

Technical Parameters

Working frequency

f

50Hz-60Hz

Line insulation

V

1000

Rated primary current

In

1A

Dielectric strength

500MΩ/500V/min

Rated secondary output

IO

0.5mA

Insulation voltage

3000VAc(r.m.s)(2mA/1min)

Rated load resistance

Ω

500

Linearity

f

<1.5%

Operating temperature

Ta

-12℃ ~ +75℃

Accuracy class

1class

Storage temperature

Ts

-20℃ ~ +75℃

Rated continuous thermal current

A

2




Definition of primary, secondary and polar end of transformer:

1.1 Definition of  transformer primary and secondary Transformer primary feedthrough input, secondary lead or terminal output.

1.2 Definition of primary and secondary leads with same polarityP1-S1Yellow P2-S2 Black

1.3 The electrical schematic diagram of the transformer is as follows:

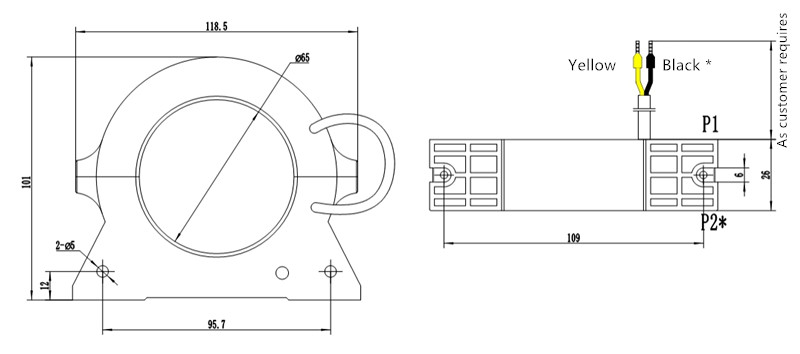

Dimension

65
