ZMB16R10DIP
Zeming
8504500000
Product parameters
| Electrical parameters | |||||||||||||
| Rated current rms | Ipn | 50A | 100A | 125A | 200A | ||||||||
| Measuring range | Ipm | 150A | 300A | 375A | 600A | ||||||||
| Turn ratio | Np/Ns | 1:1000 | 1:2000 | 1:1000 | 1:2000 | ||||||||
| Rated output | Isn | 50mA | 50mA | 125mA | 100mA | ||||||||
| Coil internal resistance | Rs | 30Ω | 50Ω | 30Ω | 50Ω | ||||||||
| Max measuring resistance | Rm | (Uc-0.6V)*1000/Is-Rs | |||||||||||
| Supply voltage | Uc | ±12V～±15V | |||||||||||
| Current consumption | Ic | 15mA+Is | |||||||||||
| Insulation voltage | Vd | 3kVAC/50Hz/1min | |||||||||||
| Dynamic parameter | |||||||||||||
| Precision（@Ipn,Ta=25℃） | XG | ＜±0.5% | |||||||||||
| Linearity（@Ta=25℃） | Er | ＜±0.1%FS | |||||||||||
| Zero offset current（@Ta=25℃,Ip=0） | IO | <±0.2mA | |||||||||||
| Magnetic offset current (Ipn->0) | IOH | <±0.1mA | |||||||||||
| Zero temperature drift | TCVOE | <±0.005mA/℃ | |||||||||||
| Response time | Tr | <1us | |||||||||||
| Accurately followed | di/dt | >100A/us | |||||||||||
| Frequency bandwidth（@-3dB） | BW | DC～200kHz | |||||||||||
| General parameters | |||||||||||||
| Ambient operating temperature | Ta | -40～+85℃ | |||||||||||
| Ambient storage temperature | Ts | -55～+125℃ | |||||||||||
| Weight | m | 21g | |||||||||||
| Case material | PBT G30/G15 UL94-V0 | ||||||||||||
| Executive standard | EN50178:1998 | ||||||||||||
| IEC60950-1:2001 | |||||||||||||
| SJ20790-2000 | |||||||||||||
Advantage
●Easy to install
●Low power consumption
●Wide measuring range
●High precision and good linearity
●Lower temperature drift
●Strong anti-interference ability
●Strong overload capability
Application
●AC frequency conversion speed control device
●Power filter
●UPS uninterruptible power supply
●SMPS Switched Mode Power Supplies
●Electromagnetic heating
●Power DC screen
●Industrial grade

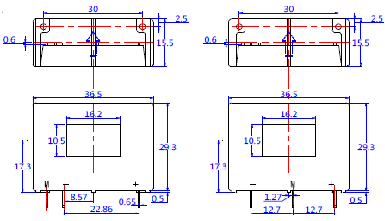

Structure & Instructions
![CIE}O([MD@BZI8KYY]BIC45](http://5krorwxhmqqirik.leadongcdn.com/cloud/lmBqoKomRipSorklmikq/CIE-O-MD-BZI8KYY-BIC45.png)
![J]DTO8}LOR]30P2DZTM_J5](http://5krorwxhmqqirik.leadongcdn.com/cloud/lnBqoKomRipSorkljlkq/J-DTO8-LORP2DZTM_J5.png)
1. The direction of the current should be the same as the direction of the arrow of the casing;
2、Please refer to the wiring definition on the physical shell, the wrong wiring willDamaged module;
3、In order to obtain better dynamic characteristics and sensitivity, it is recommended to use a single turn wire and the wire fills the module through the wire hole best;
4、The primary side wire temperature should not exceed 100 °C;
5、 The above parameters are standard specifications, and the products can be customized according to customer needs.
