ZM-CT Series current Transformer Used for Relay Protection

ZM-CT series current Transformer
High accuracy, good consistency, no power supply, high reliability, for power measurement

Structural parameter

8`2HDAK6SA]A$M36S%23$5

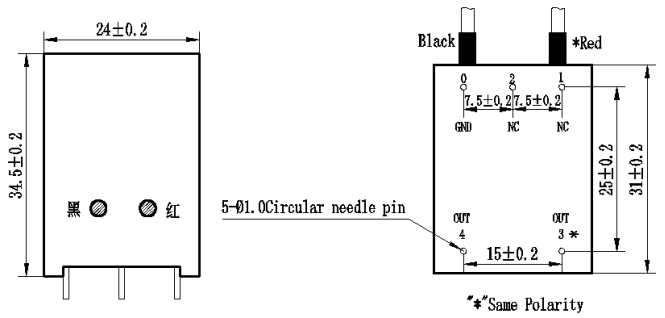

                Front view                                                             Bottom view

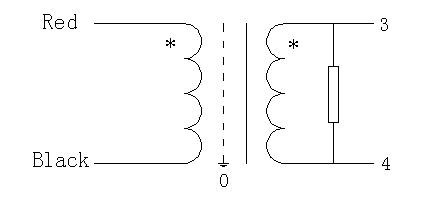

Circuit schematic

%`QB5_6RBCE[BETQE1B0II

The main technical parameters

Model

Rated

input current(A)

Rated output voltage(V)

Accuracy class

phase angle error

Overload multiples

Compressive strength(V)

remark

 ZM-CT 1.2A/3.5V

1

2.916

0.1

≤5'

2

3000

measurement



 ZM-CT 1.2A/3.53V

1

2.941

0.1

≤5'

2

 ZM-CT 1.2A/3.6V

1

3.0

0.1

≤5'

2

 ZM-CT 6A/3.5V

5

2.916

0.1

≤5'

2

 ZM-CT 6A/3.53V

5

2.941

0.1

≤5'

2

 ZM-CT 6A/3.6V

5

3.0

0.1

≤5'

2

 ZM-CT 100A/3.5V

5

0.175

0.2

≤20'

20

3000

protection

 ZM-CT 100A/3.515V

5

0.1757

0.2

≤20'

20

 ZM-CT 100A/3.53V

5

0.1765

0.2

≤20'

20

 ZM-CT 150A/3.53V

5

0.1176

0.2

≤20'

30

 ZM-CTH 100A/3.5V

5

0.175

0.2

≤60'

20

3000

Anti-Dc component

 ZM-CTH 100A/3.515V

5

0.1757

0.2

≤60'

20



Note: the table is commonly used models of customers, if customers require different ratios; you only need to provide the technical requirements for the design and production.
