ZM-RPT Series voltage Transformer Used for Relay Protection

ZM-RPT series current Transformer
High accuracy, good consistency, no power supply, high reliability, for power measurement

Structural parameter

N4V024WYWQ]J}W@COOB[0L

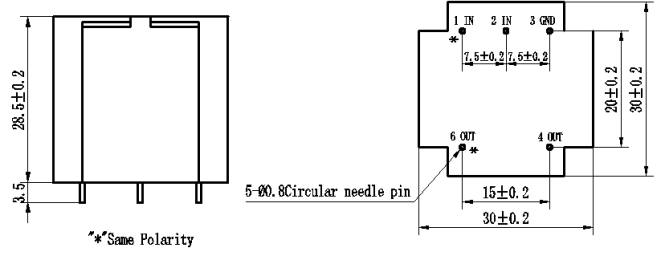

                Front view                                                             Bottom view

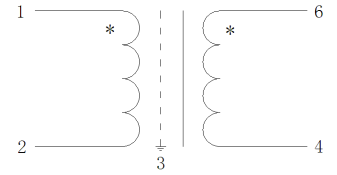

Circuit schematic

BTR_Q(}DAA4A}7NGE4CGG1

The main technical parameters

Model

Rated

input voltage (V)

Rated

 output voltage(V)

No-load current of the rated voltage(m A)

Accuracy class

phase angle error

Overload multiples

Compressive strength (V)

 ZM-RPT 100V/4.2V

100

4.2

≤0.5

0.2

≤35

1.3

3000

 ZM-RPT 120V/3.53V

100

2.942

≤0.5

0.2

≤35

1.3

 ZM-RPT 120V/6.36V

100

5.3

≤0.5

0.2

≤35

1.3

 ZM-RPT 456V/3.53V

380

2.942

≤0.5

0.2

≤35

1.2

 ZM-RPT 456V/6.36V

380

5.3

≤0.5

0.2

≤35

1.2



Note: the table is commonly used models of customers, if customers require different ratios; you only need to provide the technical requirements for the design and production.
