ZM-RCT Series current Transformer Used for Relay Protection

ZM-RCT series current Transformer
High accuracy, good consistency, no power supply, high reliability, for power measurement

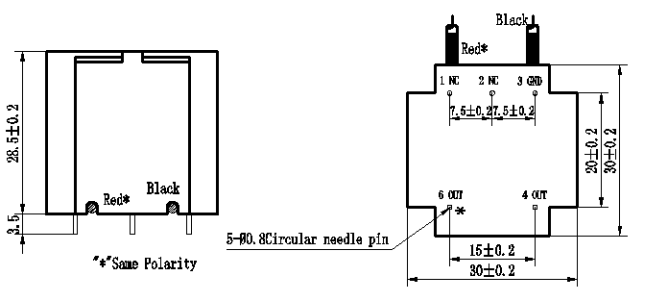

Structural parameter

TMON{}2D25SCB4@]I`3C}NJ

                Front view                                                             Bottom view

Circuit schematic

$$SD2A6DH}0P@V]QUX6R8_T

The main technical parameters

Model

Rated input current(A)

Rated output voltage(V)

Accuracy class

phase angle error

Overload multiples

Compressive strength(V)

remark

 ZM-RCT 20A/6.4V

1

0.32

0.5

≤1.5º

20

3000

protection

 ZM-RCT 24A/3.53V

1

0.1471

0.5

≤1.5º

24

 ZM-RCT 100A/3.53V

5

0.1765

0.5

≤1.5º

20

 ZM-RCT 100A/6.4V

5

0.32

0.5

≤1.5º

20

 ZM-RCT 100A/7.07V

5

0.3535

0.5

≤1.5º

20

 ZM-RCT 120A/3.53V

5

0.1471

0.5

≤1.5º

24



Note: the table is commonly used models of customers, if customers require different ratios; you only need to provide the technical requirements for the design and production.
