ZM-GCT Series current Transformer Used for Relay Protection

ZM-GCT series current Transformer
High accuracy, good consistency, no power supply, high reliability, for power measurement

Structural parameter

V{A{UU`$N_RNC`4AFN[9I0T

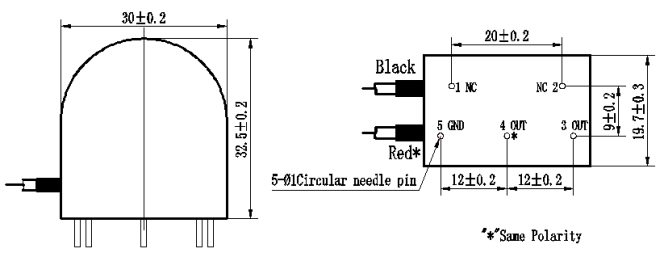

                Front view                                                             Bottom view

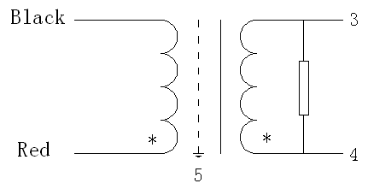

Circuit schematic

2{]K78AXF]JA``Z)4{A$IC3

The main technical parameters

Model

Rated

input current(A)

Rated

output voltage(V)

Accuracy class

Phase

 angle error

Overload multiples

Compressive strength(V)

remark

 ZM-GCT 1A/3.53V

1

3.53

0.1

≤5'

2

3000

measurement



 ZM-GCT 2A/3.53V

2

3.53

0.1

≤5'

2

 ZM-GCT 6A/1.414V

5

1.178

0.1

≤5'

2

 ZM-GCT 6A/2.4V

5

2.0

0.1

≤5'

2

 ZM-GCT 6A/3.53V

5

2.941

0.1

≤5'

2

 ZM-GCT 20A/1.414V

1

0.0707

0.2

≤20'

20

3000

protection

 ZM-GCT 20A/2.4V

1

0.12

0.2

≤20'

20

 ZM-GCT 20A/3.53V

1

0.1765

0.2

≤20'

20

 ZM-GCT 100A/1.414V

5

0.0707

0.2

≤20'

20

 ZM-GCT 100A/2.4V

5

0.12

0.2

≤20'

20

 ZM-GCT 100A/3.53V

5

0.1765

0.2

≤20'

20



Note: the table is commonly used models of customers, if customers require different ratios; you only need to provide the technical requirements for the design and production.
