2mA/2mA PCB mounting Voltage Transformer 1000:1000

Application and Features
1 .For applications that require a limited internal space of devices
2. Applications would include voltage,power,and energy monitoring devices
3. Current measurement, precision power meter
4. Low cost, PCB mounting pattern and flying wires Pattern
5. Operating frequency: 50-400HZ

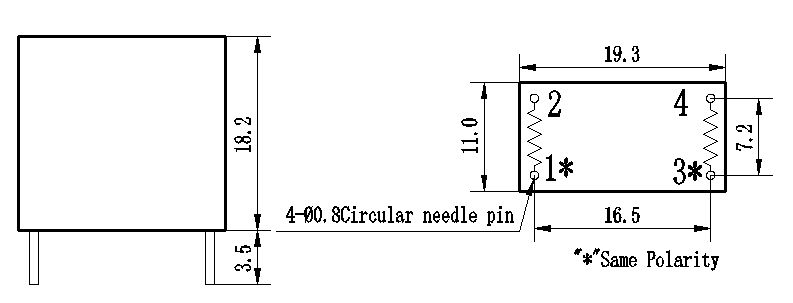

Structural parameters

ZMPT107N

Current-type Voltage transformer

Small size, high accuracy, good consistency, for voltage and power measurement


The main technical parameters

Model

ZMPT107N

Rated input current

1.76mA

Rated output current

1.76mA

turns ratio

1000:1000

phase angle error

No requirement

linear range

0~1000V       0~10mAsampling resistor 50Ω

linearity

1 %50%dot~120%dot

Permissible error

-1.5 % ≤ f ≤ 0input 1.76mA, sampling resistor 47

Inductance value

≥60H1Khz, 0.1v

isolation voltage

4000V

application

voltage and power measurement

Encapsulation

Epoxy

installation

PCB mounting

operating temperature

- 40℃~ +85


Direction for use

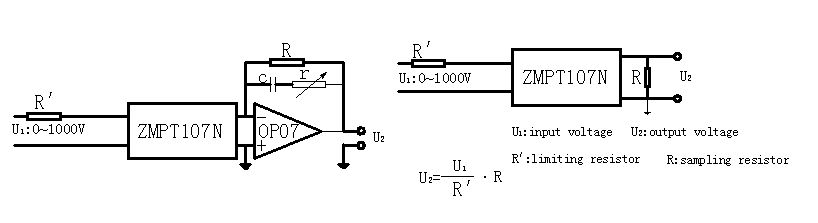

1. The typical usage of the product is for the active output (Figure). Ris a limiting resistorR is a sampling resistor.

2. The product can be directly through the resistance sampling , easy to use ( Figure).
