2mA/2mA Voltage Transformer

ZMPT112miniature voltage transformer is designed for applications where AC voltage signals must be transformed accurately into a lower voltage signal appropriate for micro-processor based circuits. ZMPT112 current-type voltage transformer is a kind of mA current transformer, which turn ratio between primary and secondary is similar to 1:1. a limiting resistor is nessary to be in it with primary winding.ZMPT112 is popular to a limited internal space of devices.

Structure parameters

ZMPT112

Current-type Voltage transformer

small sizehigh accuracygood consistencyfor voltage and power measurement

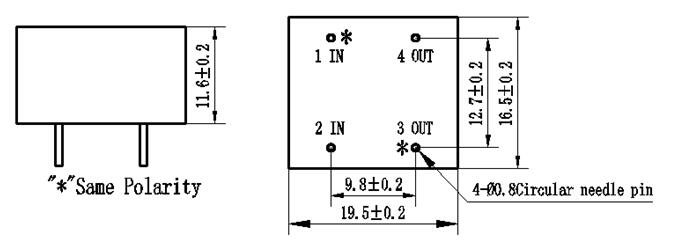

Structural parameters

ZMPT112

                                  Wiring according to the drawings, homonymous ends diagonal, the input and output can be reversed



                                         Front view                         Bottom view




The main technical parameters

Model

ZMPT112

Rated   input current

2mA

Rated   output current

2mA

turns ratio

1000:1000

phase angle error

≤45'(input 2mAsampling resistor 50Ω

linear range

0~1000V      0~10mAsampling resistor 50Ω

linearity

0.2%20%dot~120%dot

Permissible error

-0.6% ≤ f ≤0%input 2mAsampling resistance 50Ω

isolation voltage

3000V

application

current and power measurement

Encapsulation

Epoxy

installation

PCB   mountingPin Length>3mm

operating   temperature

-40℃~+85℃


Direction for use

ZMPT112-

                               Figure Ⅰ                                         FigureⅡ



1. The typical usage of the product is for the active output ( FigureⅠ). R'is a limiting resistor,R is a sampling resistor.

2. The product can be directly through the resistance sampling , easy to use ( FigureⅡ).
