φ8.9mm flying wires current transformer 2000:1

AC flying wires current transformer 50/60HZ , MINI Precision flying wires current transformers .Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, lead wires assembly
5. fully ROHS compliant , CE approved

Product Description

ZMCT350C  Current Transformer

high accuracy, good consistency, for current measurement



Structural parameters:

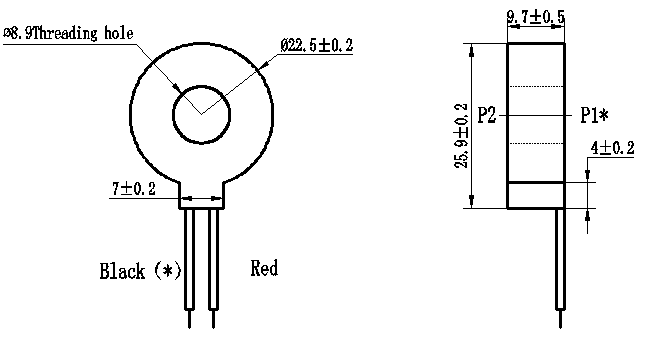

                                                                        Front view                                                                Left view



The main technical parameters:

 Model

ZMCT350C

 input current

0-50A (sampling resistor 10Ω)

Rated output current

2.5mA at input 5A

turns ratio

2000:1

phase angle error

≤20(input 5Asampling resistor 10Ω)

linear range

0~50A(sampling resistor 10Ω)

linearity

0.2%5%dot~120%dot

Ratio error

-0.5%≤f≤+0.5%(input 5Asampling resistor 10Ω)

isolation voltage

3000V

application

measurement

Encapsulation

Epoxy

installation

Output leads installation

operating temperature

-40℃~+85℃

Instruction:

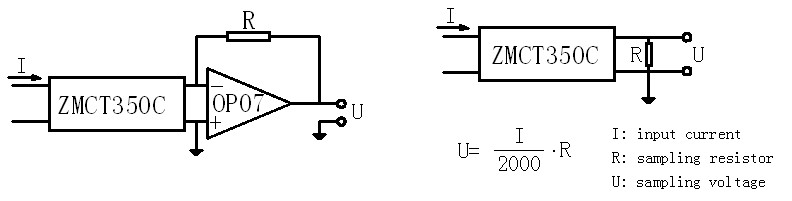

                                                     Figure Ⅰ                                                                         FigureⅡ

1. ZMCT350C  used for the measurement, the typical usage is shown in Figure Ⅰand Figure Ⅱ. R is a sampling resistor.
