φ6.5mm PCB mounting current transformer 70A, 2500:1

Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved

Structural parameter

TA502/2-A  Current Transformer

Small sizehigh accuracygood consistencyfor power measurement and protection

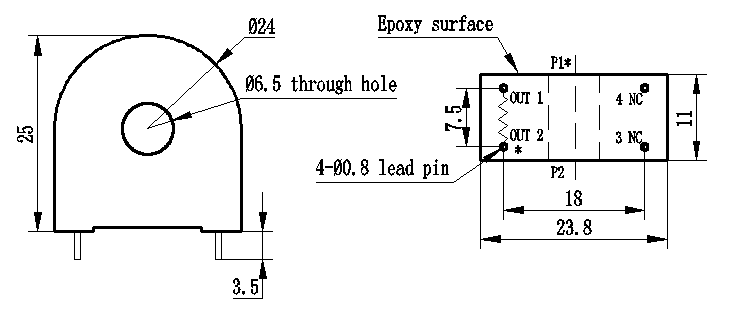

Structural parameter


                                                   Front view                                                                                   Bottom view


The main technical parameters

Model

TA502/2-A

Rated input current

0~70Asampling resistor 100Ω

Rated output current

2mA at input 5A

turns ratio

2500:1

Phase angle error

20'(input 1A, sampling resistor 100Ω

Accuracy class

0.2

linearity

0.1%(5%dot~120%dot)

Permissible error

-0.2%f+0.2%input 1Asampling resistor 100Ω

isolation voltage

4500V

application

current and power measurement

Encapsulation

Epoxy

installation

PCB mounting

operating temperature

-40~+85


Direction for use

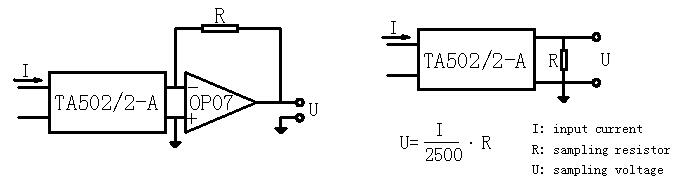

TA502 2-2A

                                                 Figure                                                    Figure

1. TA502/2-A used for measurement. Typical usage  is shown in Figure 1 and Figure 2. R is a sampling resistor.

2. Empty pin can not be grounded.
