φ4.5mm PCB mounting current transformer 2000:1 100A 0.5class

ZMCT112C Current Transformer
Small size,wide linear range,mainly for power automation protection sampling
Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved

Structural parameters

ZMCT112C  Current Transformer

Small sizewide linear rangemainly for power automation protection sampling

ZMCT112C

  1、2pin: secondary output,3、4pin: empty pin

                                 Front view                                                         Bottom view


The main technical parameters

Model

ZMCT112C

Rated input current

0~100Asampling resistor 2

Rated output current

2.5mA at input 5A

turns ratio

2000:1

phase angle error

≤60input 5Asampling resistor 2

Accuracy class

0.5

linearity

≤0.3%  (5%dot and 120%dot)

Permissible error

-0.5%≤f≤+0.5%input 5Asampling resistor 2

isolation voltage

4500V

application

power automation protection sampling

Encapsulation

Epoxy

installation

PCB mounting Pin Length>3mm

operating temperature

-40℃~+70℃


Direction for use

ZMCT112C-

Figure Ⅰ                                    FigureⅡ

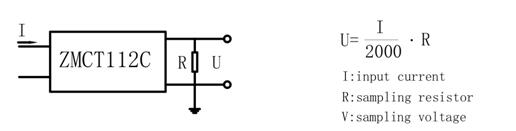

1. ZMCT112Cused for protection, typical usage as shown.

2. Empty pin can not be grounded.
