φ4.5mm PCB mounting current transformer 2000:1 20A

AC PCB mounting current transformer 50/60HZ
MINI Precision PCB mounting current transformers . Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved

Structural parameters

ZMCT204A current transformer

Small sizehigh accuracygood consistencyfor accurate current and power measurement

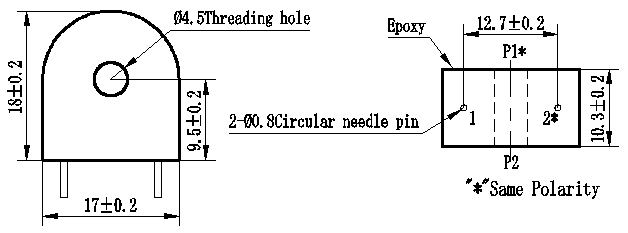

Structural parameters:






                                              Front view                                       Bottom view


The main technical parameters

Model

ZMCT204A

input current

0~20Asampling resistor 100Ω

Rated output current

2.5mA at input 5A

turns ratio

2000:1

phase angle error

≤20input 1Asampling resistor 100Ω

Accuracy class

0.2

linearity

≤0.2%5%dot~120%dot

Permissible error

-0.2% ≤ f ≤+0.2%input 1Asampling resistor 100Ω

isolation voltage

4500V

application

Precise current and power measurement

Encapsulation

Epoxy

installation

PCB mounting Pin Length>3mm

operating temperature

-40℃~+85℃


Direction for use

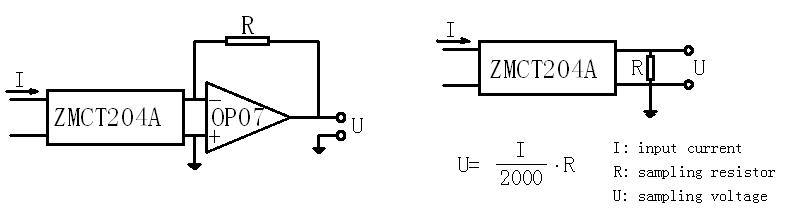

Direction for use


                               Figure Ⅰ                                                        FigureⅡ

1. The typical usage of the product is for the active output (FigureⅠ). R is a sampling resistor.

2. The product can be directly through the resistance sampling, easy to use (FigureⅡ).
