φ10mm leading wires current transformer 2000:1

Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, lead wires assembly
5. fully ROHS compliant , CE approved

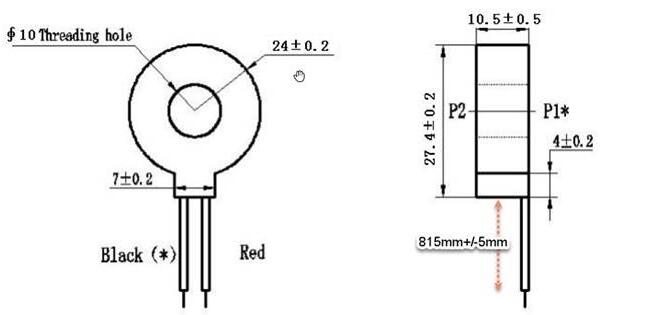

Structural parameters:

线长815mm +- 5mm

The main technical parameters

 Model

ZMCT356

 input current

0-50A (sampling resistor 10Ω)

Rated output current

2.5mA at input 5A

turns ratio

2000:1

phase angle error

≤20(input 5Asampling resistor 10Ω)

linear range

0~50A(sampling resistor 10Ω)

linearity

0.2%5%dot~120%dot

Ratio error

-0.5%≤f≤+0.5%(input 5Asampling resistor 10Ω)

isolation voltage

3000V

application

measurement

Encapsulation

Epoxy

installation

Output leads installation

operating temperature

-40~+85


Instruction

               ZMCT356-

                                       Figure                         Figure

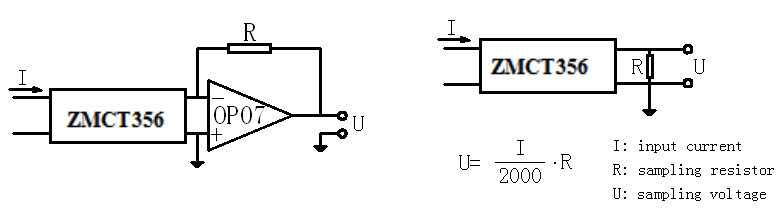

1. ZMCT356  used for the measurement, the typical usage is shown in Figure and Figure . R is a sampling resistor.


Material list

NO.

Material

Spec, model

UL code

SGS

1

Ultracrystallite core

Ø14*19*5

——

yes

2

Enameled wire

(Winding wire)

2UEW Ø0.082000T

E258243

yes

3

Tape

Flame retardant,

Environmentalprotection,

5mm

E328315

yes

4

Fills and seals material

TXH-9201 epoxy resin insulating compound

E196959

yes

5

Outer covering



Environmental protection

E59481

yes

6

Leading wires

1007-26#,0.12mm

E315651

yes
