φ11mm leading wires current transformer 2500:1

Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, lead wires assembly
5. fully ROHS compliant , CE approved

Structural parameters:


The main technical parameters

Model

ZMCT187

Input current

0-120A (10Ω

Rated output current

4mA at input 10A

Turns ratio

2500:1

Phase angle error

20'(Input 10A,sampling resistor 10Ω)

Accuracy class

   0.5

Permissible error

-0.5% f ≤+0.5%(Input 10A,sampling resistor10Ω

Isolation voltage

3000V

Usage

Precise measurement of current and power

Encapsulation

Epoxy

Installation

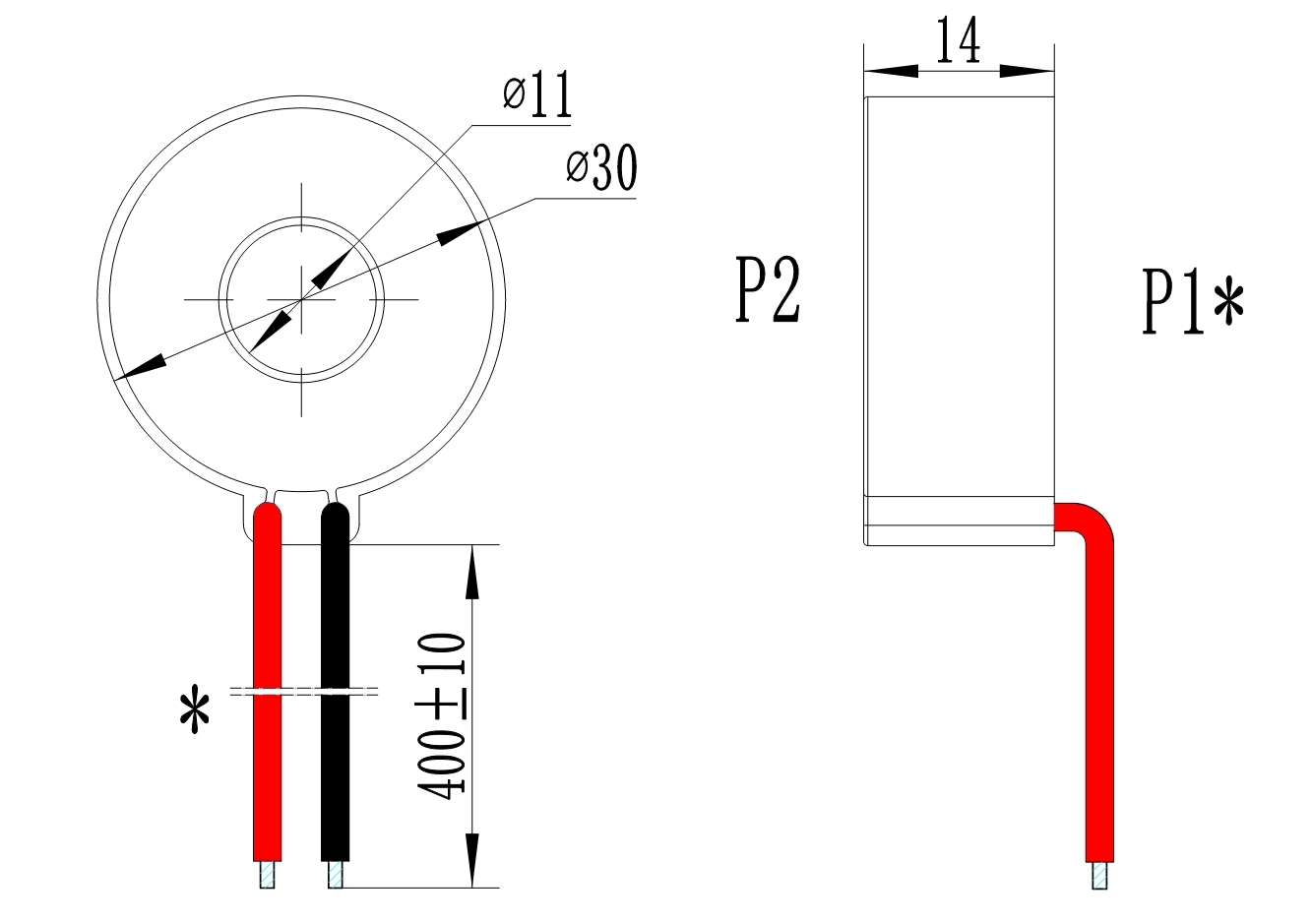

Output lead mountingThe lead length of the drawing is the regular length

Operating temperature

-40~+85℃


Direction for use


1、1. The typical usage of ZMCT187 is the active output (Figure 1). R is the sampling resistor.

2、2, the product can be directly sampled through the resistor, easy to use (Figure 2).
