φ7mm leading wire current transformer 80A

Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved

Structural parameter



            Front View                                     Bottom View


Unit: mm

Connector: Molex 5264


The main technical parameter

Model

ZMCT183

 input current

0-80A(10Ω)

Rated output current

2mA at 5A

turns ratio

2500:1

phase angle errorrated input

≤12'(5A input, sampling resistor 10Ω

linearity

0.1%(5% ~120% of 5A)

Ratio error

-0.1%f+0.1% (5A input, sampling resistor 10Ω)

isolation voltage

4500V

application

Measurement or protection

Encapsulation

Black Epoxy

installation

Flying wire type

operating temperature

-40℃~+85


Direction for use

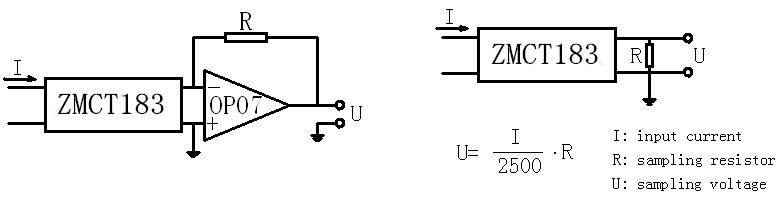

                                                              Figure Ⅰ                                    FigureⅡ



1. The typical usage of the product is for the active output (Figure Ⅰ). R is a sampling resistor, c and r is used for phase compensation.

2. The product can be directly through the resistance sampling, easy to use (FigureⅡ).

3. The instructions are for reference only, specific parameter is subject to specifications (acknowledgment).
