φ37.8mm leading wire current transformer 400A

Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved
Availability:
Inquire Add to Basket

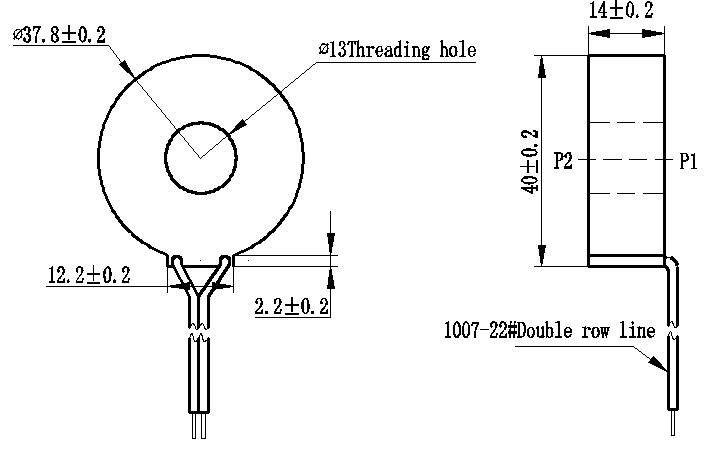

Structural parameters



                                      Front View                                Lateral view


The main technical parameters

Model

ZEMCT303A-2

      input current

0~400A（sampling resistor 5Ω）

Rated output current

5mA at input 5A

Turns ratio

1000:1

phase angle error

≤200＇（input 10A，sampling resistor 5Ω）

linearity

≤5%(5%dot~120%dot)

Permissible error

-5% ≤ f ≤0（input 10A，sampling resistor 5Ω）

Output leads

Red, black（ same polarity: P1 and red wire）

application

motor soft-start current sampling

Encapsulation

Epoxy

installation

Straight-through type

operating temperature

-40℃~+85℃


Direction for use

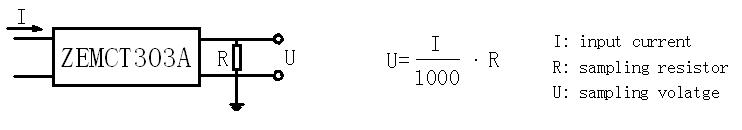

1. ZEMCT303A used for protection. Typical usage as shown.
