φ14.5mm leading wires current transformer 760:1

Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, lead wires assembly
5. fully ROHS compliant , CE approved
Availability:

Structural parameters:

ZMCT360I-1 图纸(1)

The main technical parameters

Model

ZMCT360I-1

input current

0-100A (sampling resistor 20Ω)

Rated output current

26.3mA at input 20A

turns ratio

760:1

phase angle error

No requirements (input 20A, sampling resistor 20Ω)

Accuracy class

3.0

Permissible error

-3.0%≤f≤+3.0% (input 20A, sampling resistor 20Ω)

isolation voltage

3000V

application

measurement

Encapsulation

Epoxy

installation

Output leads installation

operating temperature

-40~+85

Air Ambient

-40~+85


Instruction

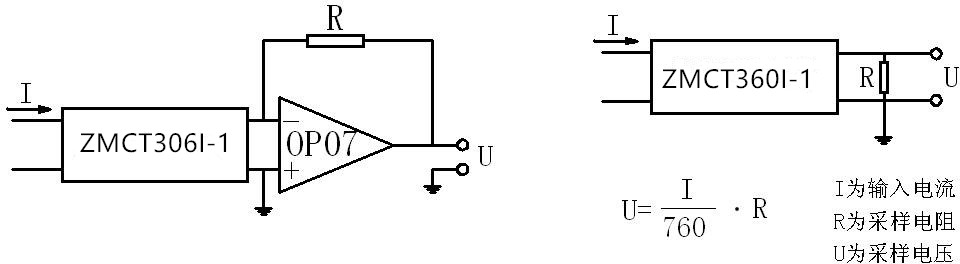

                                       Figure                         Figure

1. ZMCT360I-1  used for the measurement, the typical usage is shown in Figure and Figure . R is a sampling resistor.


Material list

NO.

Material

Spec, model

UL code

SGS

1

Silicon Steel core with epoxy

coating

Ø18.5*26.5*5

——

yes

2

Enameled wire

(Winding wire)

Ø0.13, 760T

E258243

yes



3



Tape

Flame retardant, Environmental protection, 5mm



E328315



yes

4

Fills and seals material

TXH-9201 epoxy resin insulating

compound

E196959

yes

5

Outer covering

Environmental protection

E59481

yes

6

Leading wires

UL1007-22#

E315651

yes
