AC flying wires current transformer 50/60HZ, MINI Precision flying wires current transformers. Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, lead wires assembly
5. fully ROHS compliant , CE approved
production description
ZMCT153 Current Transformer

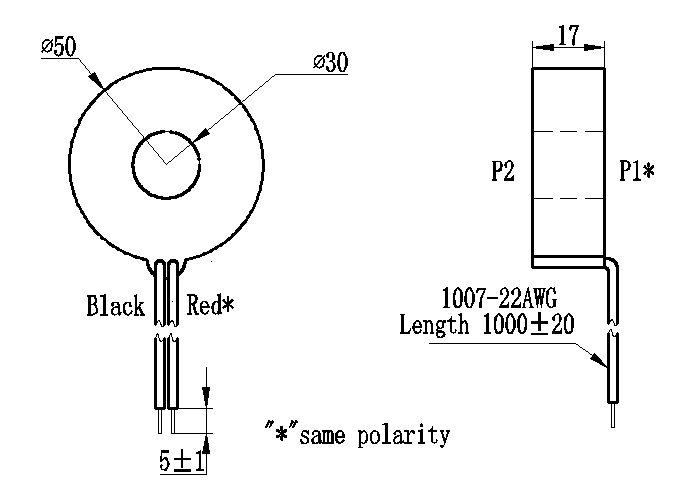

Structural parameters：
(Unit:mm)
NOTE: ALL LEAD WIRES ARE #22AWG UL1007, 300V;
LENGTH 1000±20.0mm. S&T 5.0±1mm
Front View Lateral view
The main technical parameters：
Model | ZMCT153 |
input current | 0~300A（sampling resistor 10Ω） |
Rated output current | 10mA at input 20A |
Turns ratio | 2000:1 |
Accuracy class | 0.2 |
linearity | ≤0.1%(5%dot~120%dot) |
Permissible error | -0.2% ≤ f ≤+0.2%（input 20A，sampling resistor 10Ω） |
Output leads | Red, black（same polarity: P1 and Red wire） |
Isolation voltage | 3000V |
Case | PBT |
Wire | #22AWG UL1007, 300V |
Encapsulation | Epoxy |
installation | Straight-through type |
operating temperature | -40℃~+85℃ |
Direction for usage：
1. ZMCT153 used for protection. Typical usage as shown.
