Φ9.5mm Current transformer Flying Wires 2500:1 1.0class

AC flying wires current transformer 50/60HZ, MINI Precision flying wires current transformers. Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, lead wires assembly
5. fully ROHS compliant , CE approved
Availability:
Inquire Add to Basket

production description

FEATURES:

1. Very high output voltage&linearity in small size

2. Integral flying leads for ease of installation

3. Manufactured in an ISO9001:2008, ISO14001:2004

4. Fully ROHS&REACH Compliant



 Electrical Specifications at 20℃

Parameter

ZMCT354

Operating frequency

50/60HZ

 primary current

50A

Turns ratio

2500:1

Rated burden resistance

33Ω

Operating temperature

-40℃ to +85℃

Storage temperature

-40℃ to +85℃

Dielectric withstand voltage

4000V

Accuracy Class

0.2



MECHANICAL DIMENSIONS

Primary current(A)

10

20

30

40

50

60

70

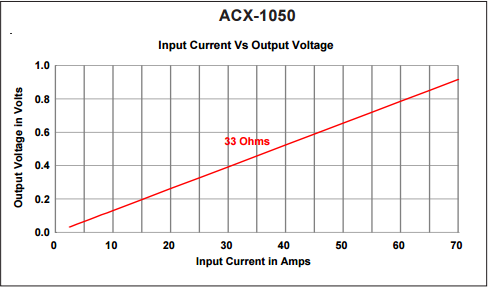

Secondary output voltage for 33 ohm load (mV)

0.132

0.264

0.396

0.528

0.66

0.792

0.924

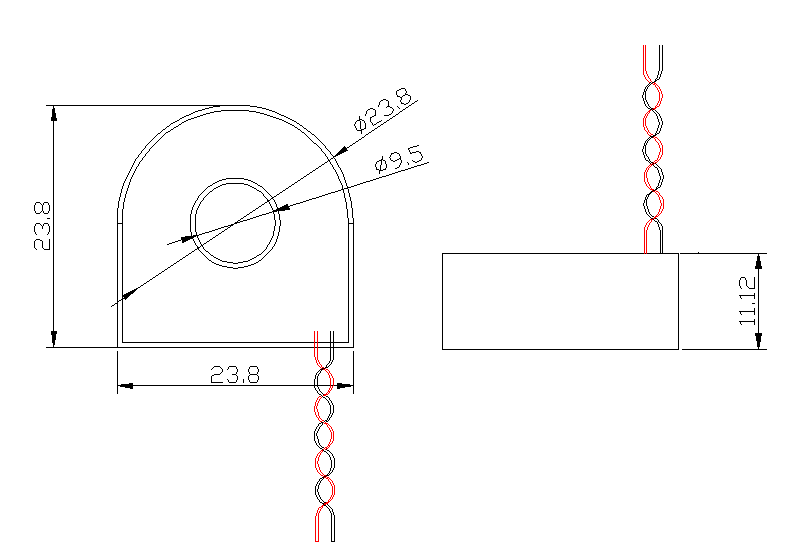

MECHANICAL DIMENSIONS


         Leads out : Flex UL 1569,  AWG26, 300V Rating, 130±5mm long out of trafo with 5mm tinned ends

         Dimension unit: mm, Dismensional Tolerace: ±0.25mm(Unless specificed)

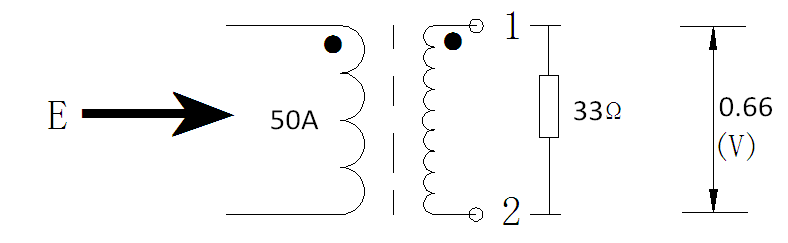

CIRCUIT SCHEMATIC：
