φ6mm PCB mounting current transformer 50A

Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved

Structural parameters


The main technical parameters

Model

ZMCT182

input current

0~50A (10Ω)

Rated output current

2.5mA at 5A

turns ratio

2000:1

phase angle error

≤20(input 5A, sampling resistor 1)

Accuracy class

1.0

Permissible error

-1%≤f≤+1% (input 5A, sampling resistor 10Ω)

isolation voltage

4500V

application

current and power measurement

Encapsulation

Epoxy

installation

PCB mounting

operating temperature

-40℃~+85℃


Direction for use

图片2_副本


                                            Figure Ⅰ                                                                   FigureⅡ

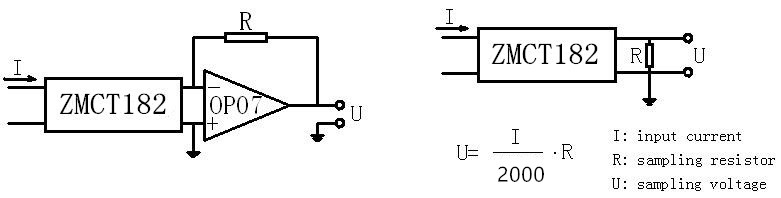

1. ZMCT182 used for measurement. Typical usage is shown in Figure 1 and Figure 2. R is a sampling resistor.

2. Empty pin can not be grounded.
