φ9.5mm PCB mounting current transformer 3 pins 2500:1

Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved
Availability:
Inquire Add to Basket

FEATURES

FEATURES:

1. Very high output voltage&linearity in small size

2. Integral PCB for ease of installation

3. Manufactured in an ISO9001:2008, ISO14001:2004

4. Fully ROHS&REACH Compliant



Electrical Specifications at 20℃

Parameter

ZMCT354A

Operating frequency

50/60HZ

 primary   current

50A

Turns ratio

2500:1

Rated burden resistance

33Ω

Operating temperature

-40℃ to +85℃

Storage temperature

-40℃ to +85℃

Dielectric withstand voltage

4000V

Accuracy Class

1.0


MECHANICAL DIMENSIONS

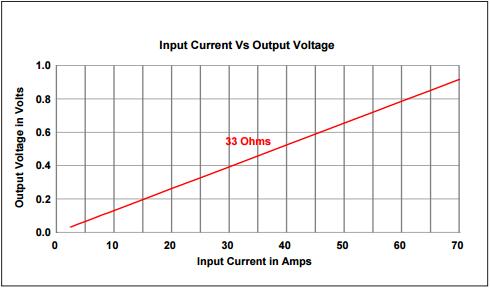

Primary current(A)

10

20

30

40

50

60

70

Secondary output voltage for 33 ohm load (mV)

0.132

0.264

0.396

0.528

0.66

0.792

0.924

 ZMCT354AZMCT354A-

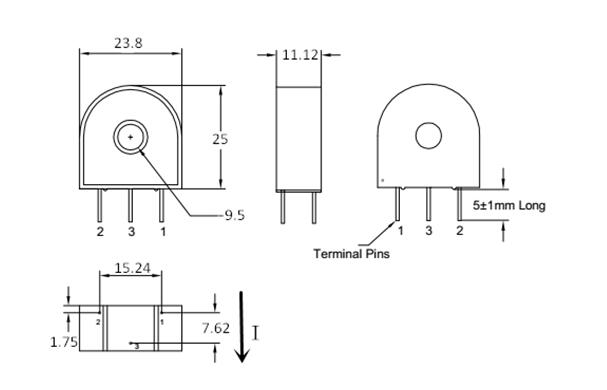

1. Dimension unit: mm, Dimension tolerance: ±0.25mm(unless specificed, Pin pitch tolerance: ±0.1mm

2. Pin 3 for menchanical support only.

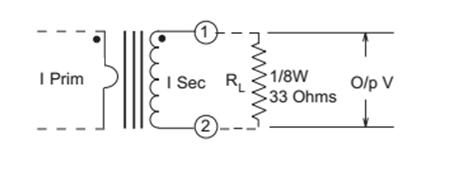

CIRCUIT SCHEMATIC

ZMCT354---
