ZMCT113C Current Transformer
Small size, wide linear range，mainly for power automation protection sampling
Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved

Model:
ZMCT113C
Brand:
ZEMING
Code:
8504311000
PDF:
ZMCT113C specification.pdf

Availability:



Inquire Add to Basket

Structural parameters

ZMCT113C Current Transformer

Small size, wide linear range，mainly for power automation protection sampling

Structural parameter:

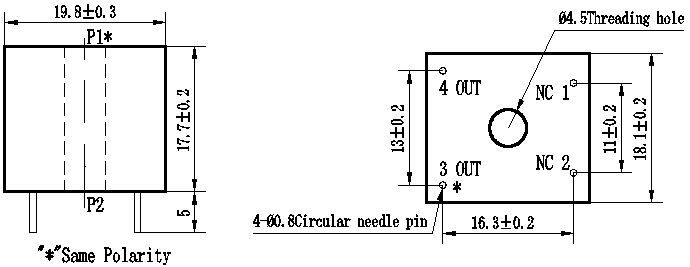

3、4pin: secondary output，1、2pin: empty pin

Front view Bottom view

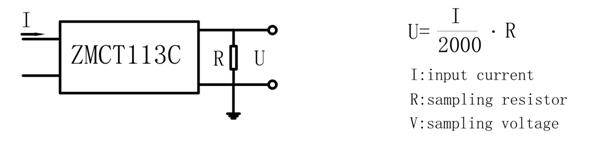

The main technical parameters

Model	ZMCT113C
Rated input current	0~100A（sampling resistor 20Ω）
Rated output current	2.5mA at input 5A
turns ratio	2000:1
phase angle error	≤60＇（input 5A，sampling resistor 20Ω）
Accuracy class	0.5
linearity	≤0.3% (5%dot and 120%dot)
Ratio error	-0.5%≤f≤+0.5% （input 5A，sampling resistor 20Ω）
isolation voltage	4500V
application	power automation protection sampling
Encapsulation	Epoxy
installation	PCB mounting （pin length >3mm）
operating temperature	-40℃~+70℃
