φ5mm PCB mounting Current transformer 2000:1 10A

ZMCT102 Current Transformer
Small size,high accuracy,good consistency,for current and power measurement
Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved
Availability:

Structural parameter

ZMCT102F-1 Current Transformer

Small sizehigh accuracygood consistencyfor current and power measurement



Structural parameter:

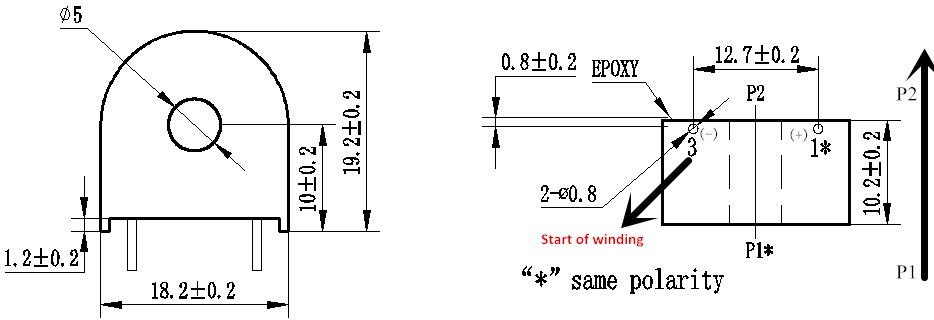

                       Front view                                                                   Bottom vie


The main technical parameters

Model

ZMCT102F-1

input current

0-10A10Ω

Rated output current

2.5mA at input 5A

turns ratio

  2000:1

phase angle error

5%dot ~120% dot of 5A, Phase difference value between the two points ≤10

sampling resistor 10Ω

linear range

0~10Asampling resistor 10Ω

linearity

0.05%5%dot~120%dot of 5A

Permissible error

-0.05%≤f≤+0.05%input 5A, sampling resistor 10Ω

application

4500V

isolation voltage

High precision measurement of current and power

Encapsulation

Epoxy

installation

PCB mountingPin length>3mm

operating temperature

-40~+85


Direction for use

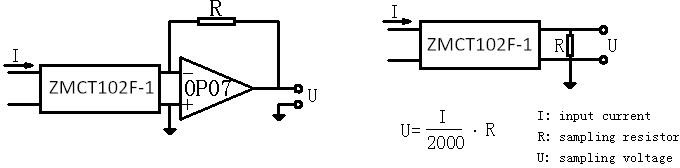

                                                  Figure Ⅰ                                                            FigureⅡ

1. The typical usage of the product is for the active output ( Figure Ⅰ) . R is a sampling resistor

2. The product can be directly through the resistance sampling , easy to use ( FigureⅡ).
