φ8.8mm PCB Mounting Current Transformer 1000:1 19A
φ8.8mm PCB Mounting Current Transformer 1000:1 19A
φ8.8mm PCB Mounting Current Transformer 1000:1 19A
φ8.8mm PCB Mounting Current Transformer 1000:1 19A
φ8.8mm PCB Mounting Current Transformer 1000:1 19A
Share to:

φ8.8mm PCB Mounting Current Transformer 1000:1 19A

ZMCT350B-2 Current Transformer
Small size, high accuracy, good consistency, for current measurement
Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved
Inquire Add to Basket

Structural parameters

ZMCT350B-2  Current Transformer

Small size, high accuracy, good consistency, for current measurement



Structural parameters：

 ZMCT350B-2

                                                       Front view                                            Bottom view

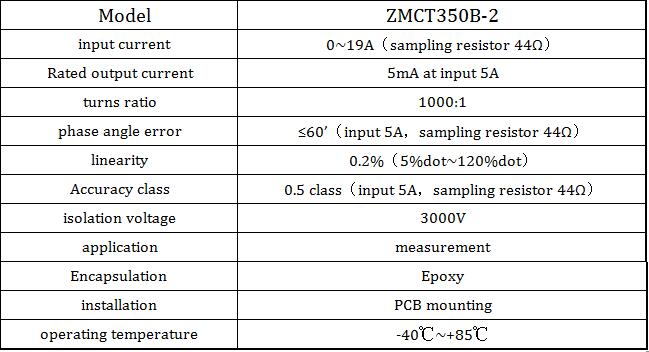

The main technical parameters

ZMCT350B-2-

PCB MOUNTING CT

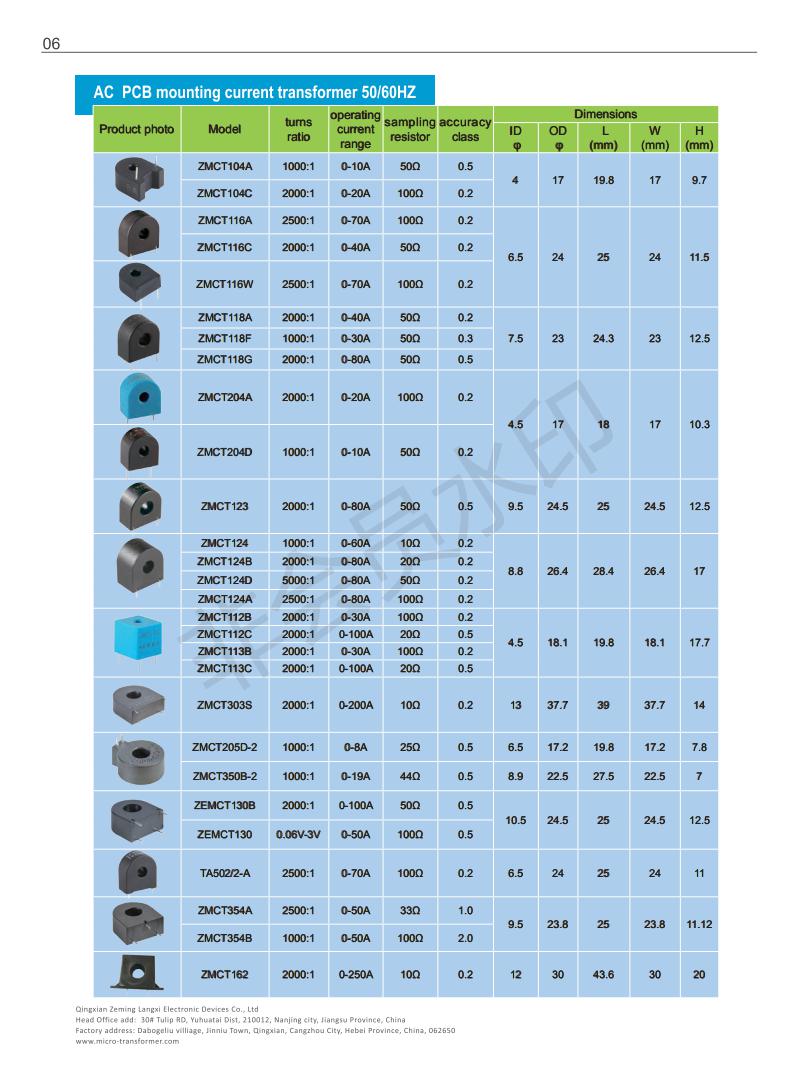

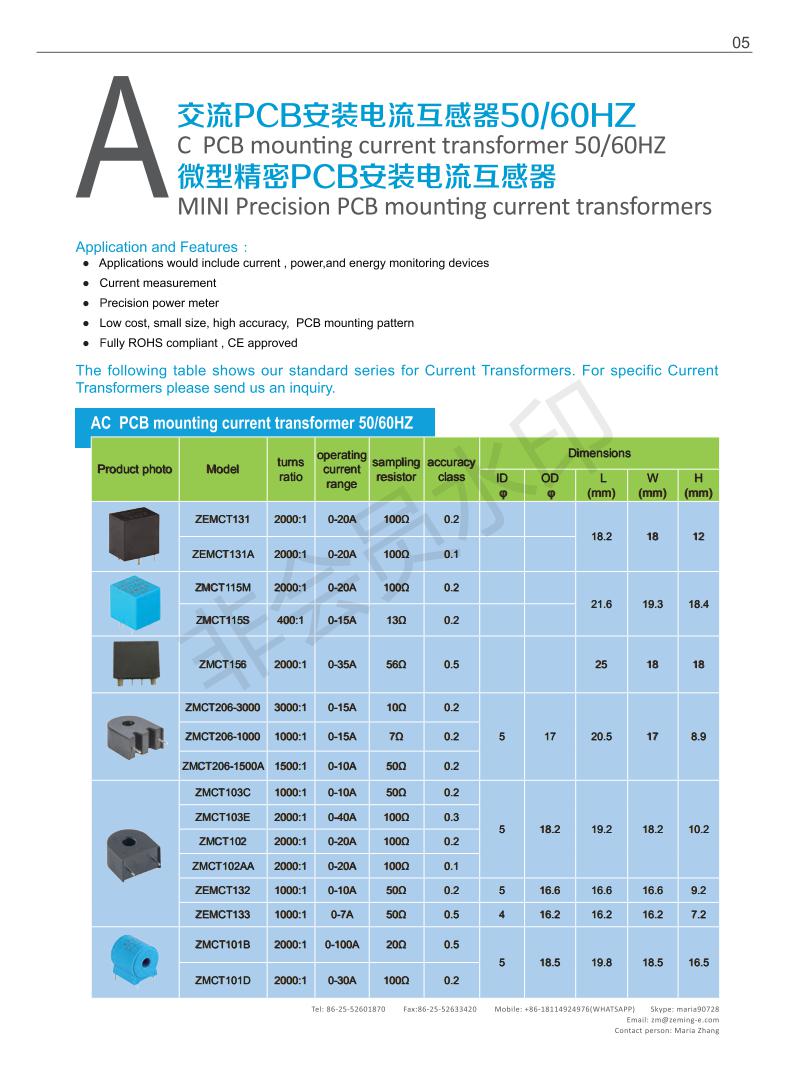

PCB mounting CT1PCB mounting CT2
