small size PCB mounting Current transformer 2000:1 20A

ZMCT364 Current Transformer
Small size,high accuracy,good consistency,for current and power measurement
Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved

Structural parameter

ZMCT364 Current Transformer

Small sizehigh accuracygood consistencyfor current and power measurement

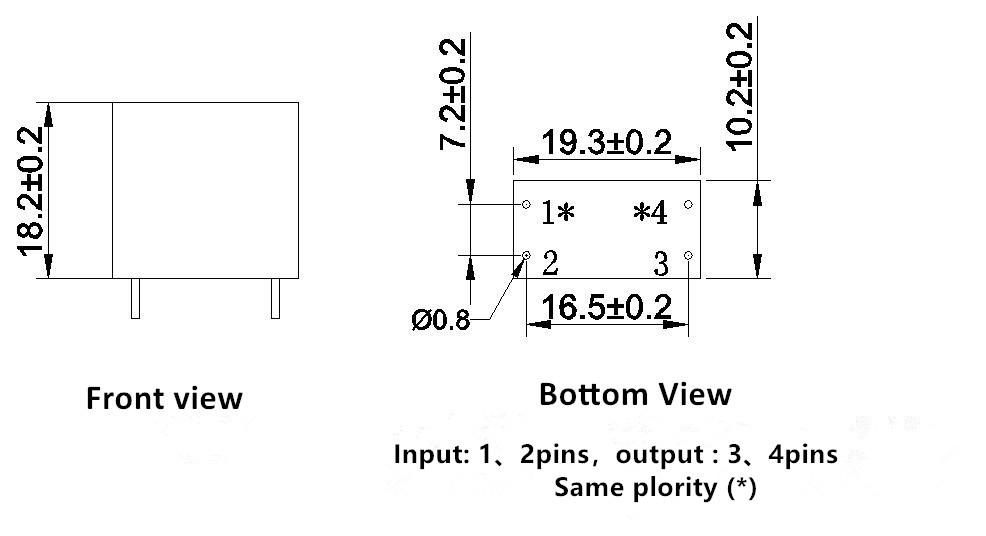

Structural parameter:

1



                       Front view                                                                   Bottom vie


The main technical parameters

 Model

ZMCT364

Rated input current

5A

Rated output current

2.5mA at input 5A

Input current

20A (sampling resistor 100Ω)

turns ratio

2000:1

phase angle error

≤15’ (input 5A, sampling resistor 100Ω)

Permission error

-0.1%≤f≤+0.1%(input 5A, sampling resistor 100Ω

Accuracy class

 ≤±0.1%

isolation voltage

4000V

Application

High precision measurement of current and power

Encapsulation

Epoxy

installation

PCB mounting (pin length ≥3mm)

operating temperature

-40℃~+85℃


Direction for use


                                                  Figure Ⅰ                                                            FigureⅡ

1. The typical usage of the product is for the active output ( Figure Ⅰ) . R is a sampling resistor

2. The product can be directly through the resistance sampling , easy to use ( FigureⅡ).
