Φ7.5mm Current transformer Flying Wires 2000:1

AC flying wires current transformer 50/60HZ, MINI Precision flying wires current transformers. Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, lead wires assembly
5. fully ROHS compliant , CE approved
Availability:

production description

ZMCT134  Current Transformer

Small sizehigh accuracygood consistencyfor current and power measurement



Structural parameters

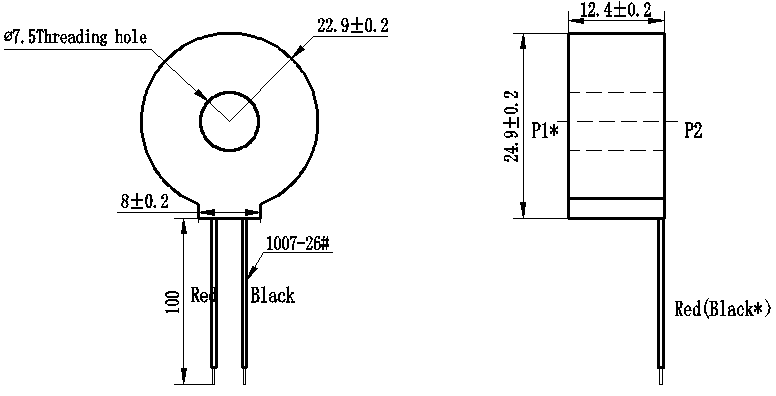

                                                Front view                                     Left View



The main technical parameters

model

ZMCT134

input current

0~40Asampling resistor 50Ω

Rated output current

2.5mA at input 5A

turns ratio

2000:1

phase angle error

≤30'(input 5Asampling resistor 50Ω

linear range/current range

0~40Asampling resistor 50Ω

linearity

≤0.2%(5%dot~120%dot)

Permissible error

-0.2%≤f≤+0.2%input 5Asampling resistor 50Ω

isolation voltage

4500V

application

Current and power measurement

Encapsulation

Epoxy

installation

Output leads installation (conventional lead length shown in drawing)

operating temperature

-40℃~+85℃

Direction for use

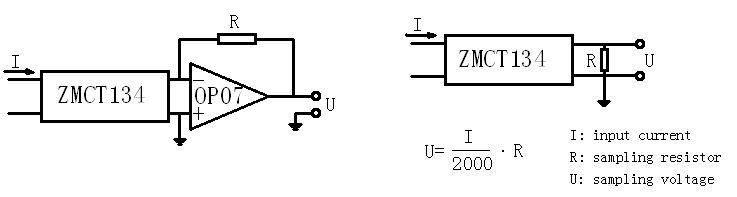

                                            Figure Ⅰ                                             FigureⅡ

1. ZMCT134 used for measurement. Typical usage is shown in Figure 1 and Figure 2. R is a sampling resistor.
