ZMCT205D
ZEMING
8504311000
production description
ZMCT205D current transformer
Small size，high accuracy，good consistency，for simple current monitoring and control
Structural parameters：

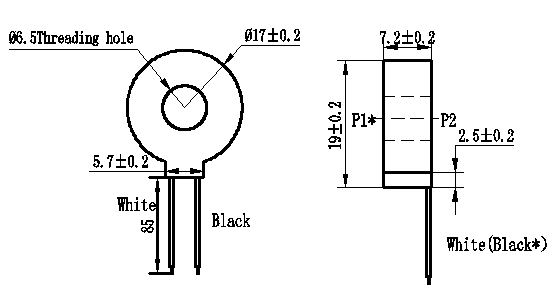

Front view Left View
The main technical parameters：
Model | ZMCT205D |
input current | 0~8A（sampling resistor 25Ω） |
Rated output current | 5mA at input 5A |
turns ratio | 1000:1 |
phase angle error | |
Accuracy class | 0.5 |
linearity | ≤0.5%（5%dot ~120%dot） |
Permissible error | -0.5% ≤ f ≤+0.5%（input 5A，sampling resistor 25Ω） |
isolation voltage | 4500V |
application | |
Encapsulation | Epoxy |
installation | Output leads installation (conventional lead length shown in drawing) |
operating temperature | -25℃~+85℃ |
Direction for use:

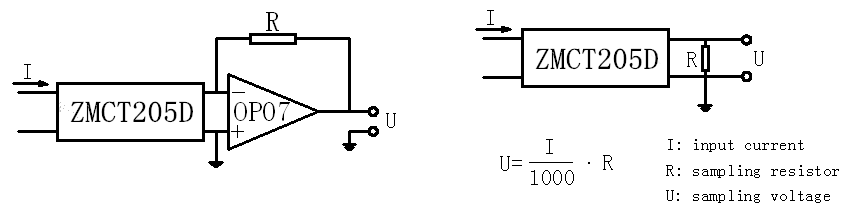

Figure Ⅰ FigureⅡ
1. ZMCT205D used for the measurement, the typical usage is shown in Figure Ⅰand Figure Ⅱ. R is a sampling resistor.
