PCB mounting current transformer 2000:1

ZMCT115M Current Transformer
AC PCB mounting current transformer 50/60HZ, MINI Precision PCB mounting current transformers,
Small size,high accuracy,good consistency,for accurate current and power measurement
Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved

Structural parameters

ZMCT115M  Current Transformer

Small sizehigh accuracygood consistencyfor accurate current and power measurement

Structural parameters

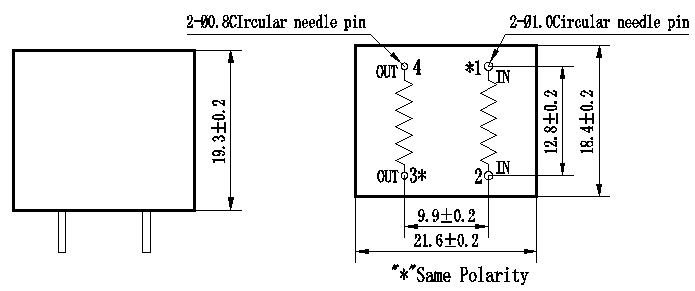

                                                          Thick needle: inputfine needle: output



                                              Front view                                                                Bottom view


The main technical parameters

Model

ZMCT115Mhomonymous   ends diagonal

Rated input current

5A

Rated output current

2.5mA

turns ratio

2000:1

phase angle error

≤15input 5Asampling resistor 100Ω

linear range

0~20Asampling resistor 100Ω

linearity

≤0.2%5%dot~120%dot

Permissible error

-0.2%≤ f ≤+0.2%input 5Asampling   resistor 100Ω

isolation voltage

3000V

application

Precise current and power measurement

Encapsulation

Epoxy

installation

PCB mounting pin length>3mm

operating temperature

-40℃~+60℃

Shell material

ABS (Note: ABS shell is not available   for wave soldering)


Direction for use


ZMCT115M-



                                                  Figure Ⅰ                                                                         Figure Ⅱ

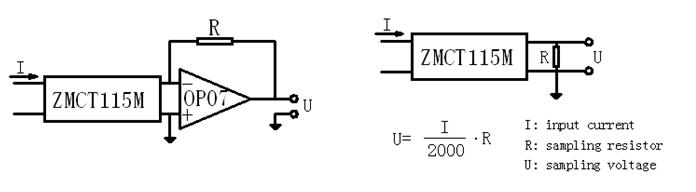

1. The typical usage of the product is for the active output ( FigureⅠ ) . R is a sampling resistor.

2. The product can be directly through the resistance sampling , easy to use (figureⅡ).
