PCB mounting current transformer 2000:1 35A

ZMCT156 Current Transformer, AC PCB mounting current transformer 50/60HZ
MINI Precision PCB mounting current transformers.
Small size, high accuracy, good consistency,Applied to the power frequency 50(60)Hz multifunction meter
Application and Features
1. Applications would include current , power,and energy monitoring devices
2. current measurement
3. precision power meter
4. Low cost, small size, high accuracy, PCB mounting pattern
5. fully ROHS compliant , CE approved

Structural parameter

ZMCT156  Current Transformer

Small size, high accuracy, good consistency, Applied to the power frequency 50(60)Hz multifunction meter

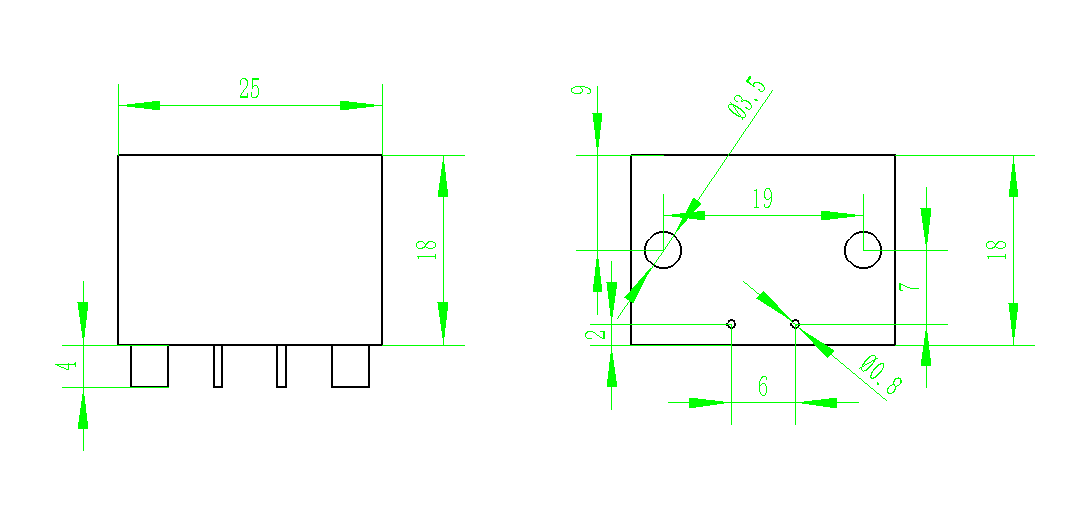

Structural parameter:



Main technical parameters

Model

ZMCT156

 input current

0~35Asampling resistor 56Ω

Rated output current

2.5mA at input 5A

Turns ratio

2000:1

Phase angle error

 30Input 5A, sampling resistor 56Ω

Accuracy class

0.5

Linearity

0.5%(5%dot ~120% dot of 5A)

Permissible error

-0.5%≤f≤+0.5%Input 5A, sampling resistor 56Ω

Isolation voltage

3000V

application

High precision measurement of current and power

Installation

PCB mountingPin length>3mm

encapsulation

Epoxy

Operating temperature

-40℃~+85℃
